1.?It features stable performance and is easy to operate.
2.?It can automatically adjust to the take-up tension.
3.?The double-cone take-up bobbin uses shaft-driven spooling to ensure consistent tension both inside and outside.

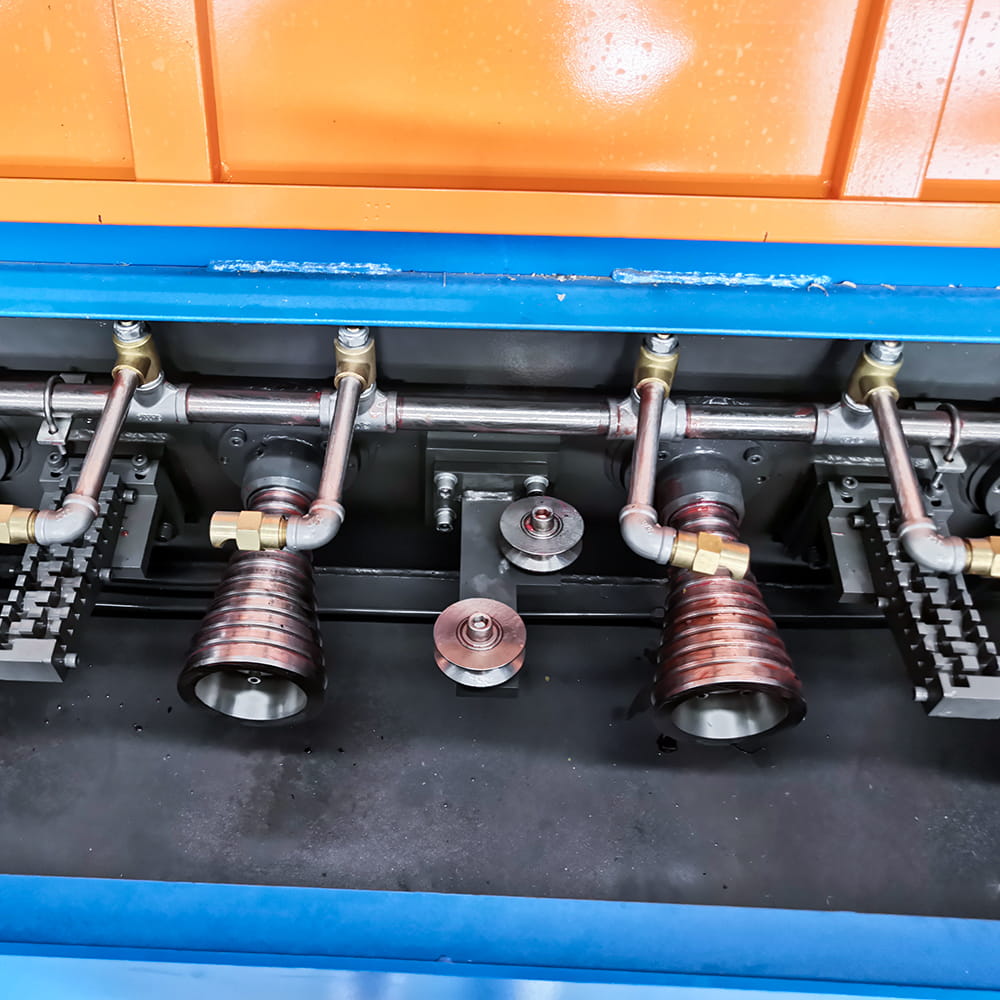

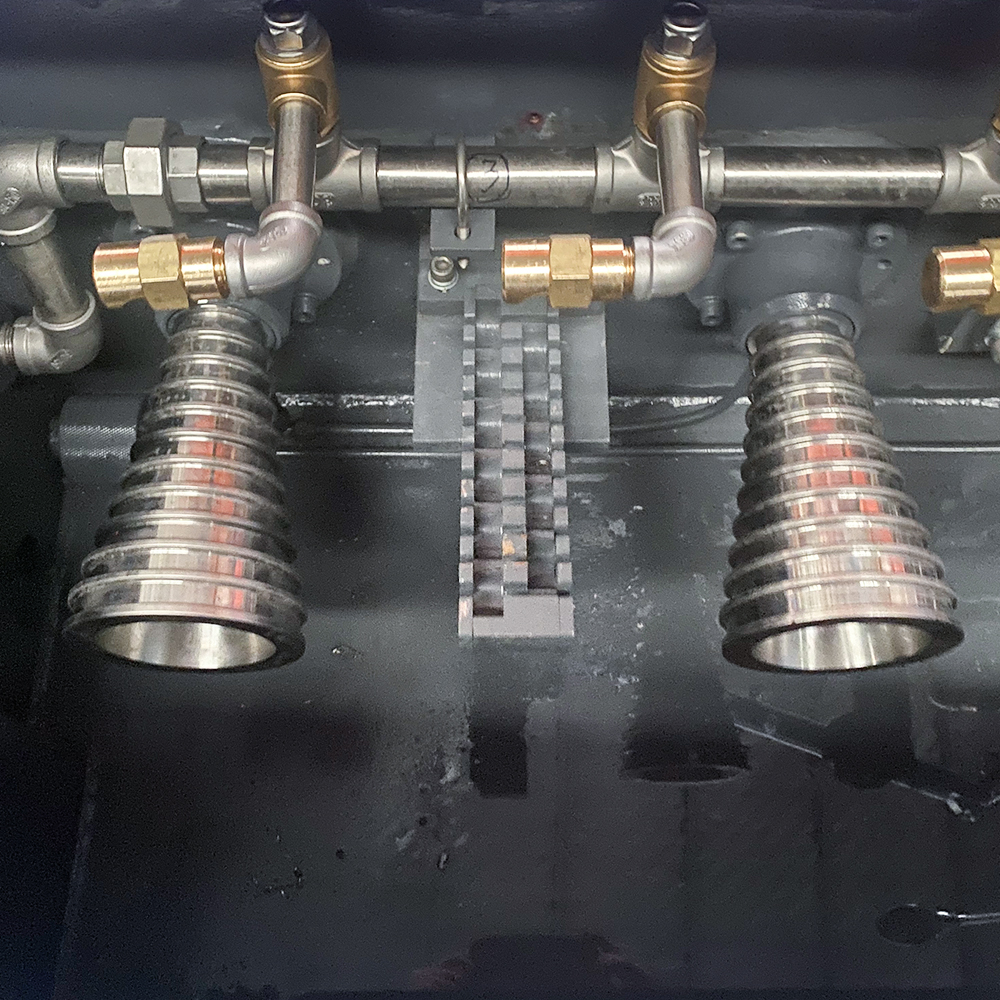

4.?The horizontally arranged drawing capstans make operation convenient.
| Model: | 24VB |
| Inlet diameter: | Φ0.45-0.7mm |
| Outlet diameter: | Φ0.03-0.12mm |
| Quantity of drawing dies: | 24 |
| Slip ratio of main machine: | 9% |
| Slip ratio of last die: | 6% |
| Max. Drawing speed: | 1200m/min |
| Using motor/ main motor: | 5.5kw |
| Usage: | Bare steel wire drawing |
| Correction system: | Automatically control |
| Annealing method: | DC three section annealing |
| Voltage: | 380V or Customized |
| Brake: | Pneumatic brake |
| Colour: | As customer's need |
| Brand: | Liqiang or OEM |
| Operation direction: | Right hand machine |
