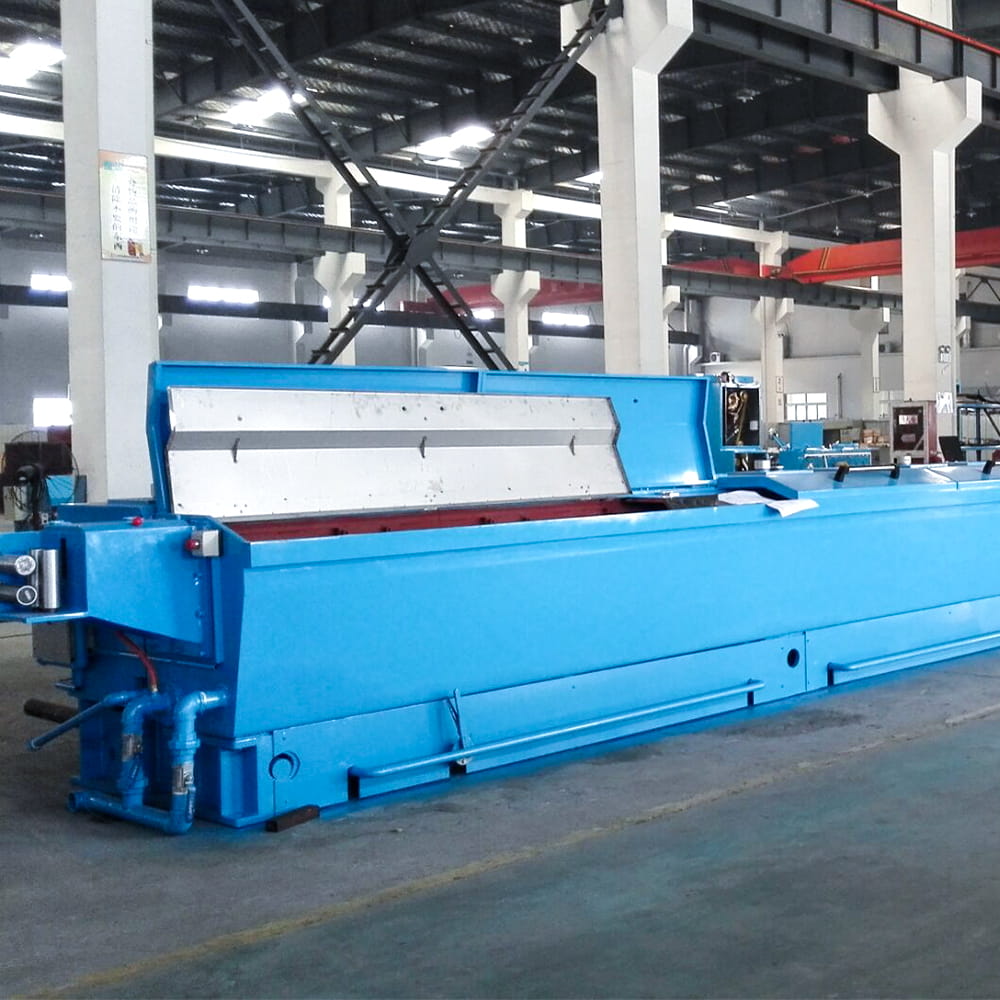

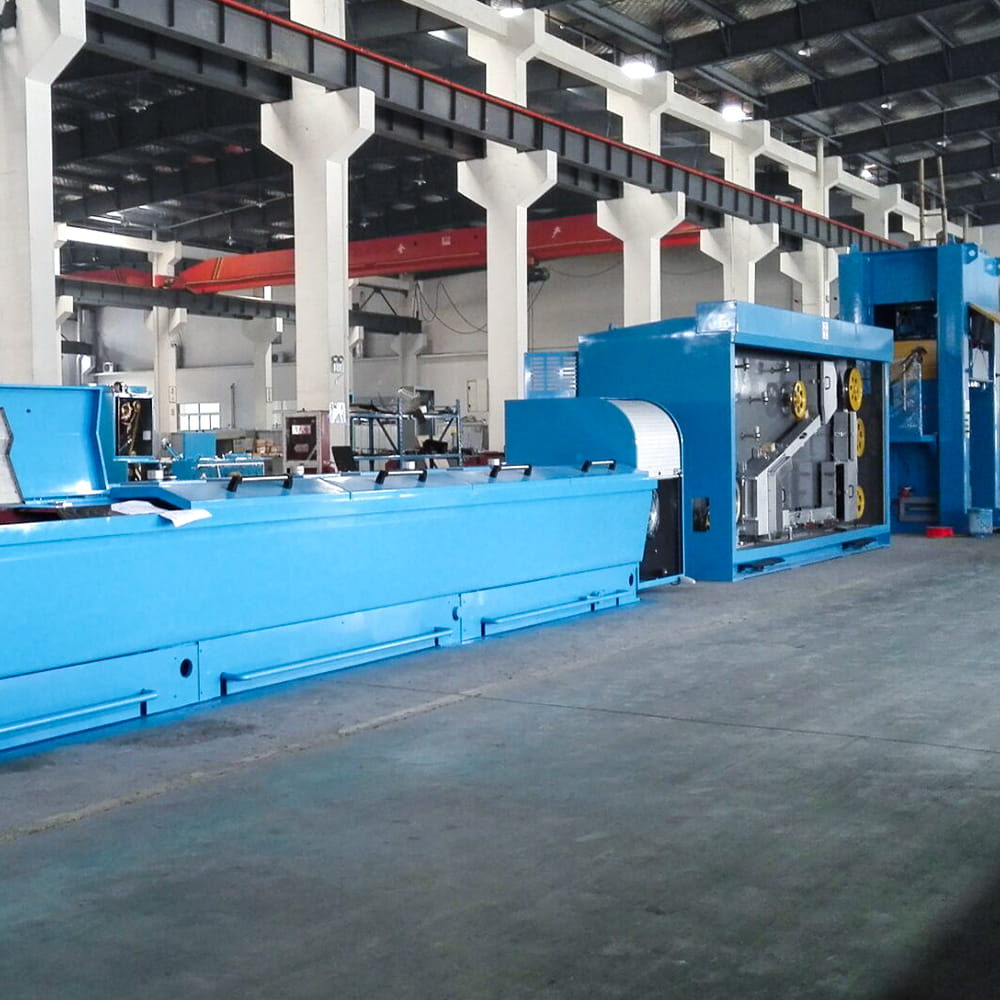

1.?The main - body frame is a one-piece casting, featuring an attractive appearance, an advanced structure, low operating noise, high production efficiency, and high economic returns.
2.?The machine exhibits high strength and excellent rigidity, ensuring stable working performance.
3.?It adopts high-precision ground gear transmission and is equipped with low-oil-level protection.
4.?Fully - immersed cooling ensures the high quality of the aluminum wire.
5.?It is equipped with imported electrical components and enables fully automated production.
| Model: | LHD450-13DT |
| Inlet diameter: | Φ8.0mm |
| Outlet?diameter: | Φ1.2 mm ~Φ4.5mm |
| Max.?annealing speed: | 25m/s |
| Drawing motor: | 280KW DC |
| Final capstan motor: | 75KW DC |
| Diameter of?drum: | Φ450mm? |
| Take up bobbin: | PND500/630 |
| Max. drawing dies: | 13 |
| Max.length of wire accumulator: | 7m |
| Annealing?voltage: | 60V |
| Annealing?current: | 6000A |
| Motor for double spooler: | 30KW*2 |
| Motor for coiler: | 22KW |
| Max. size of drawing dies: | Φ53*35 |
| Installation power: | 510KW |
