1.?The machine features a full-immersion lubrication system and synchronous-belt drive, offering characteristics such as constant tension, low noise, and high efficiency.
2.?The capstan is made of special tool - steel material.
3.?The equipment is equipped with PLC control, double-motor and double-frequency - conversion technology, and a color touch-screen display.
4.?A special straightening device is added to the export die, facilitating the release and annealing of the finished - product wire in the subsequent process.

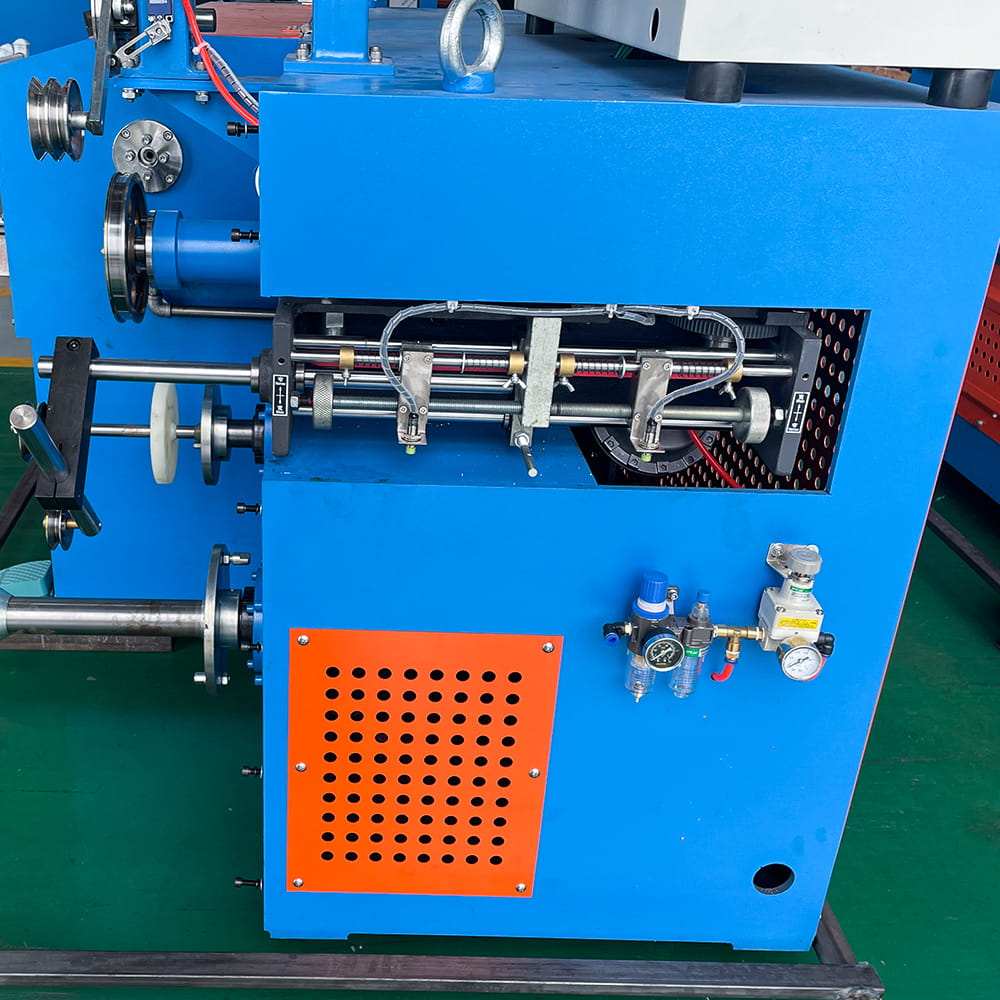

5.?A stepper motor is employed for wire arrangement, enabling adjustable and smooth wire-laying.

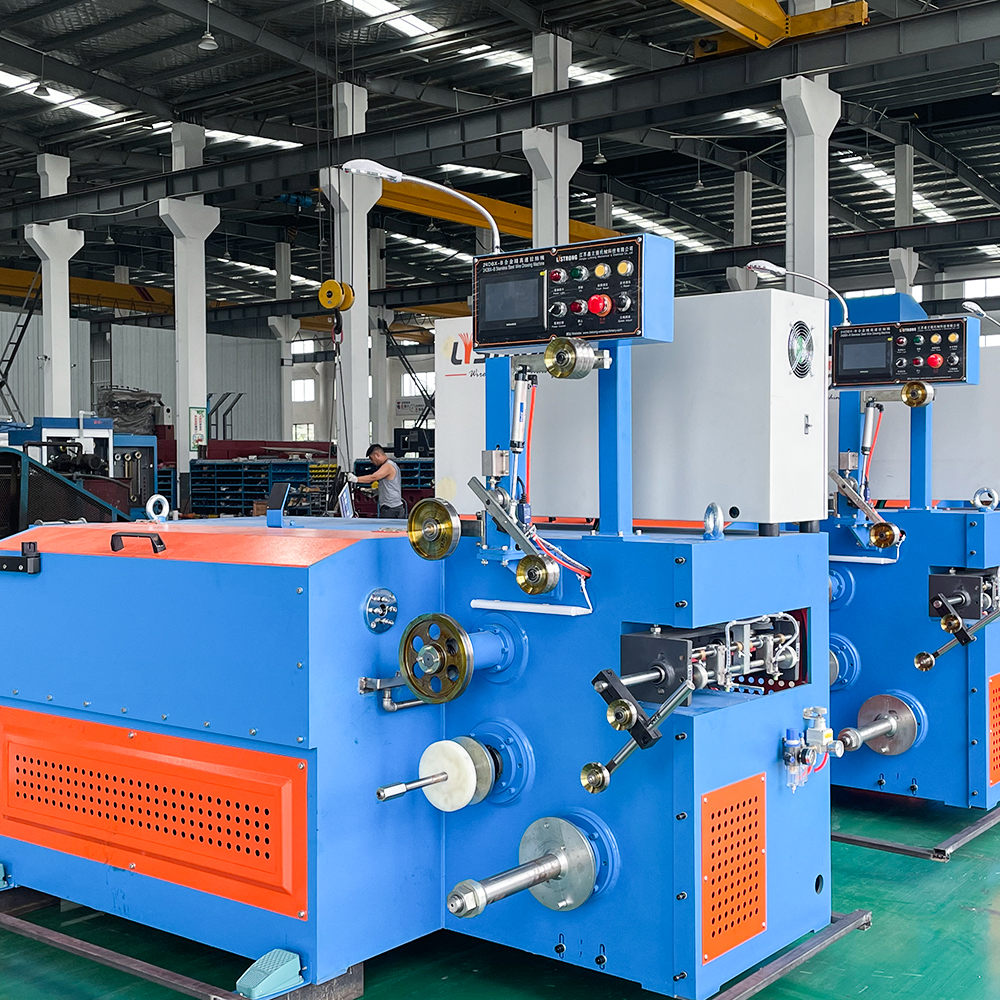

| Model: | 24DBX-H |
| Inlet diameter: | Φ0.8-1.2mm |
| Outlet?diameter: | Φ0.2 mm ~Φ0.25mm |
| Max.?annealing speed: | 1500m/min |
| Drawing motor: | 11KW DC |
| Final capstan motor: | 75KW DC |
| Diameter of?drum: | Φ450mm? |
| Take up bobbin: | PND500/630 |
| Max. drawing dies: | 24 |
| Capstan: | Bearing steel |
| Frame: | Cast |
| Correction system: | Automatically control |
| Dynamic control: | Double frequency converters control |
| Transmission method: | Timing belt |
| Lubrication system of drawing: | mmersing+spray type |
| Suitable spool: | As per customer's requirement |
