1.?It features high speed, energy-saving, space-saving, and manpower-saving characteristics.
2.?Full-immersion lubrication guarantees the optimal wire cooling effect and extends the service life of both the cones and drawing dies.

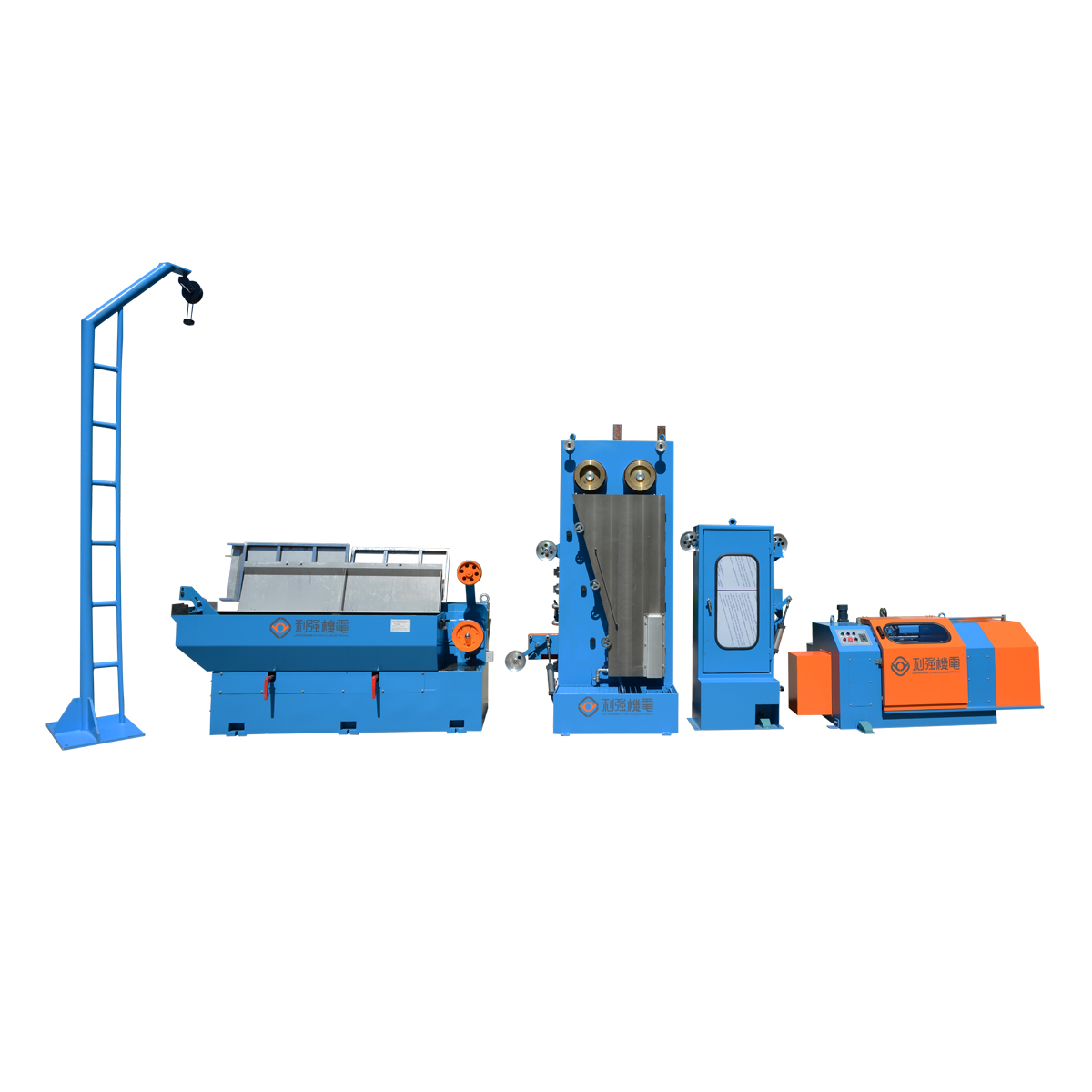

3.?An annealing machine, spooler, and drop coiler are available as optional components for this machine.
4.?The wire drawing machine can precisely control the diameter and surface quality of the wires, ensuring that the finished products meet the required accuracy standards.
5.?The machine operates stably and has a long service life.

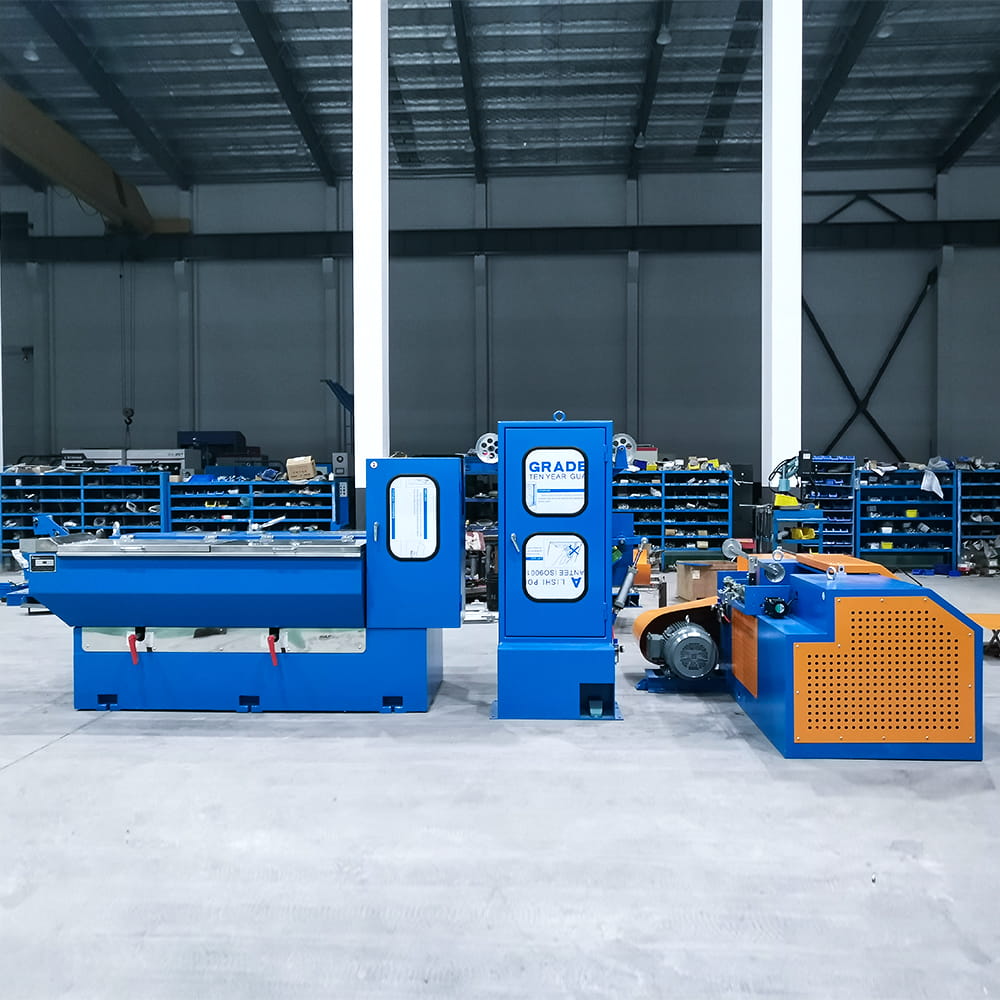

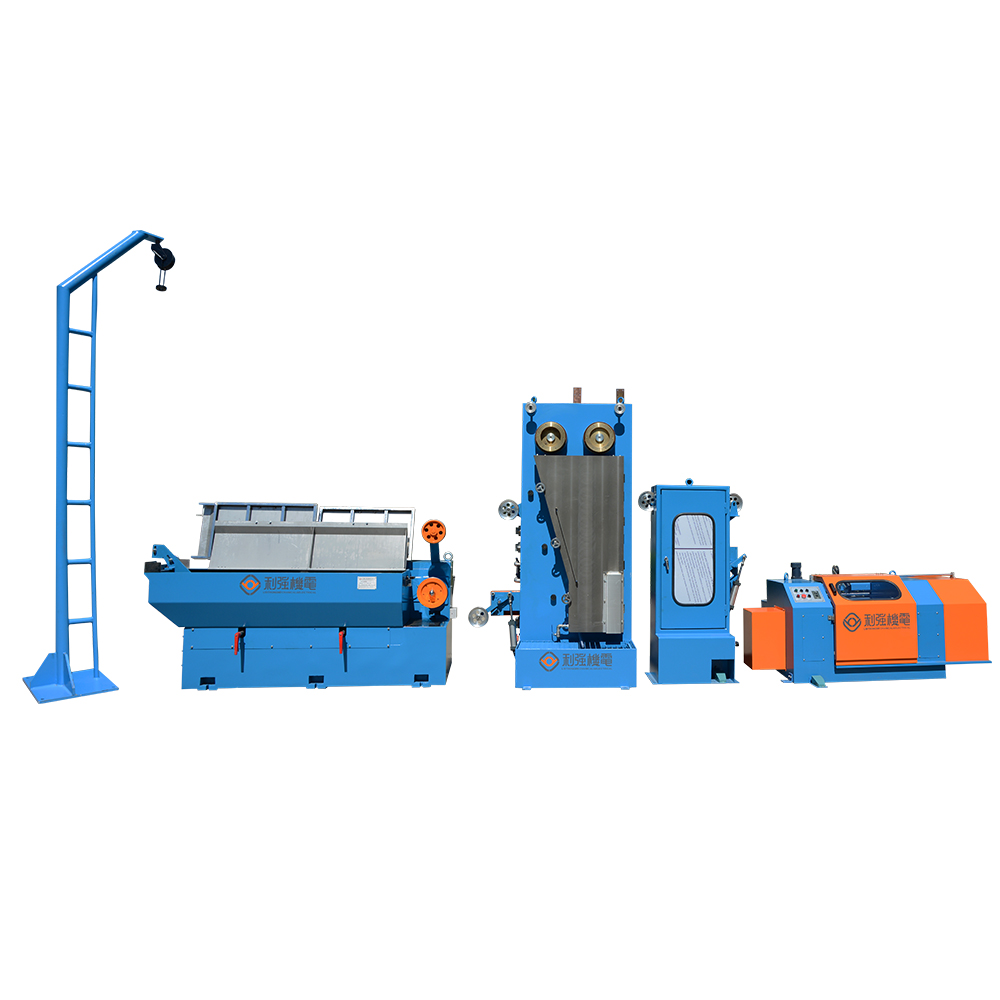

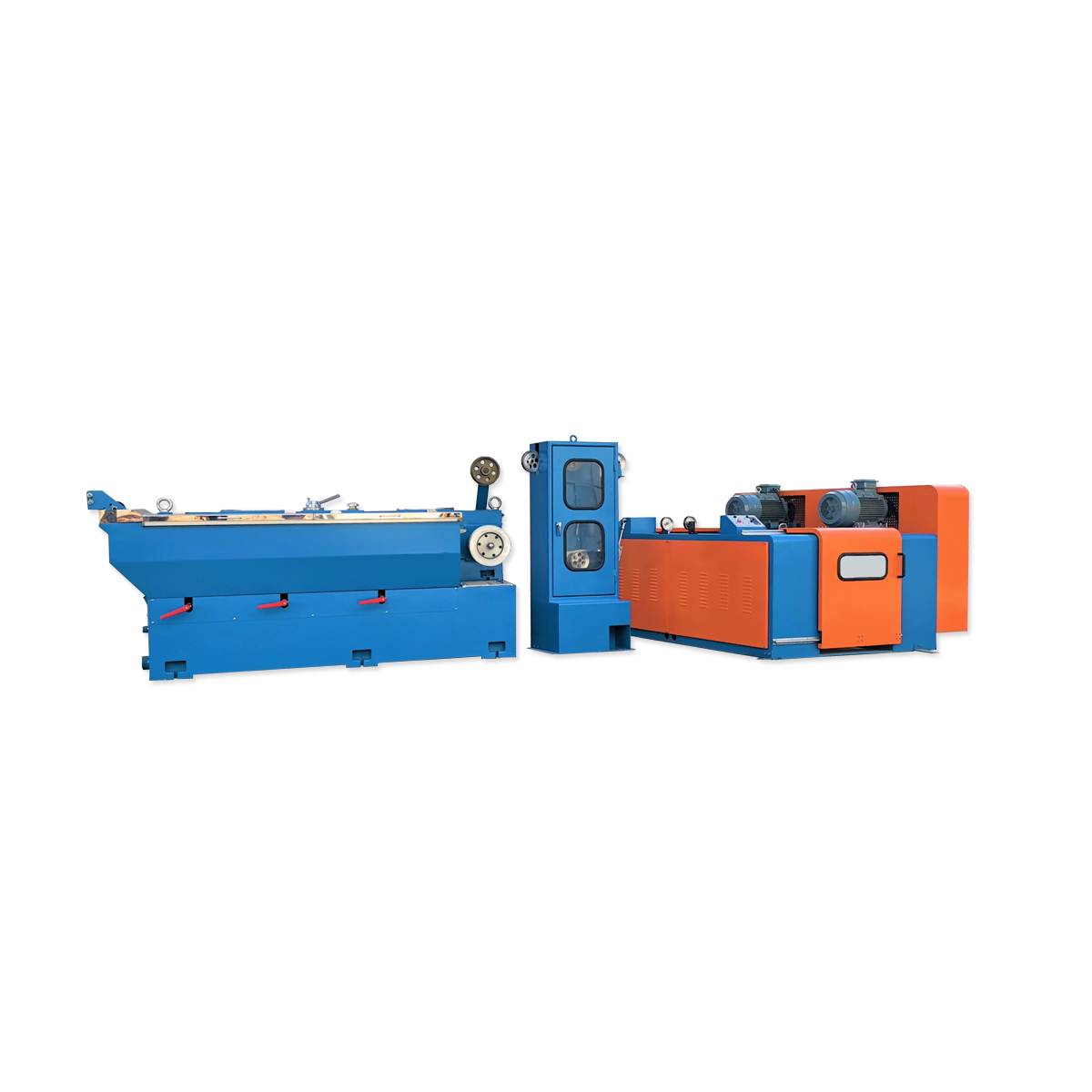

| Model: | 17DS |
| Usage: | Bare copper wire drawing |
| Inlet diameter: | Ф2.5-3.5mm |
| Outlet diameter: | Ф0.4-1.6mm |
| Quantity of drawing dies: | 17 |
| Slip ratio of main machine: | 20% |
| Slip ratio of last die: | 15% |
| Correction system: | Automatically control |
| Max. Drawing speed: | 30m/s |
| Using motor/ main motor: | 55KW AC |
| Dynamic control: | Double frequency converters control |
| Operation direction: | Right hand machine |
| (from Left to right) | |
| Colour: | As customer's need |
| Brand: | Liqiang or OEM |
| Voltage: | 380V or Customized |
| Brake: | Pneumatic brake |
