Home / Product / Copper Wire Drawing Machines / 14DT Fine copper wire automatic drawing machine with continuous annealer

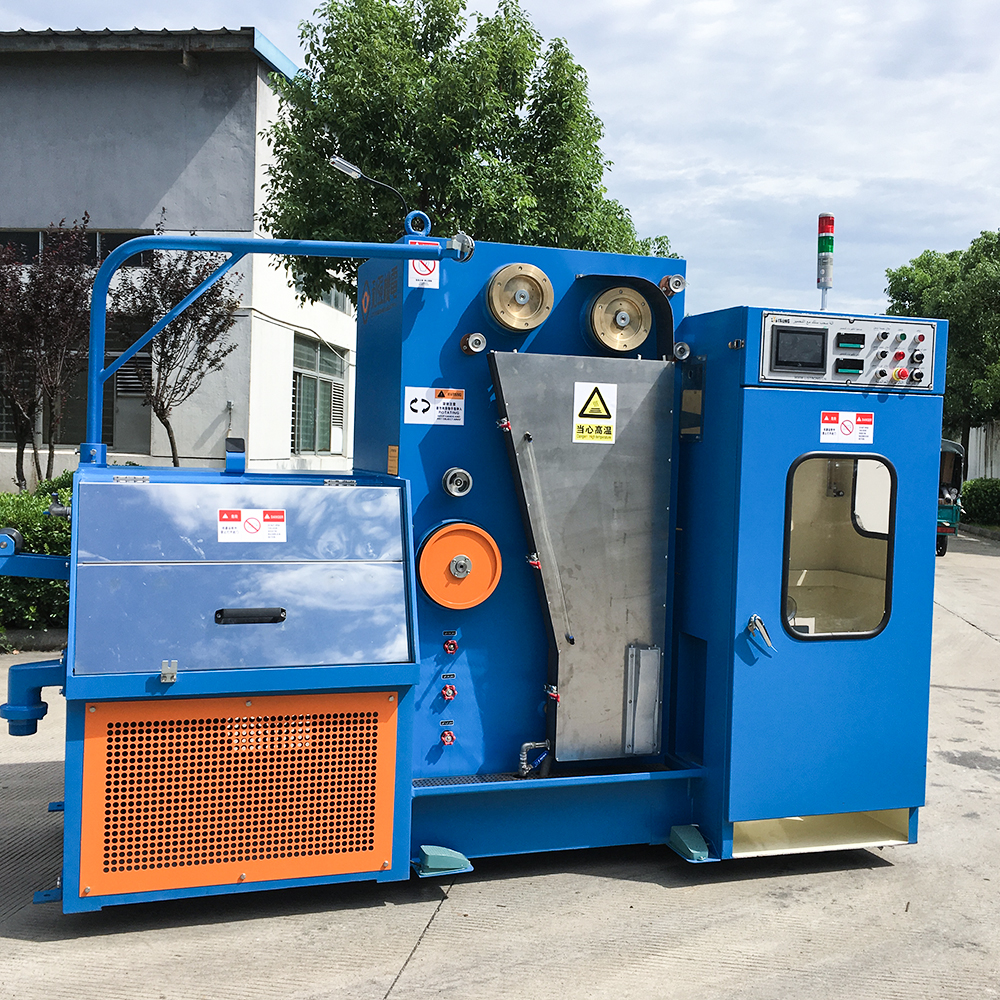

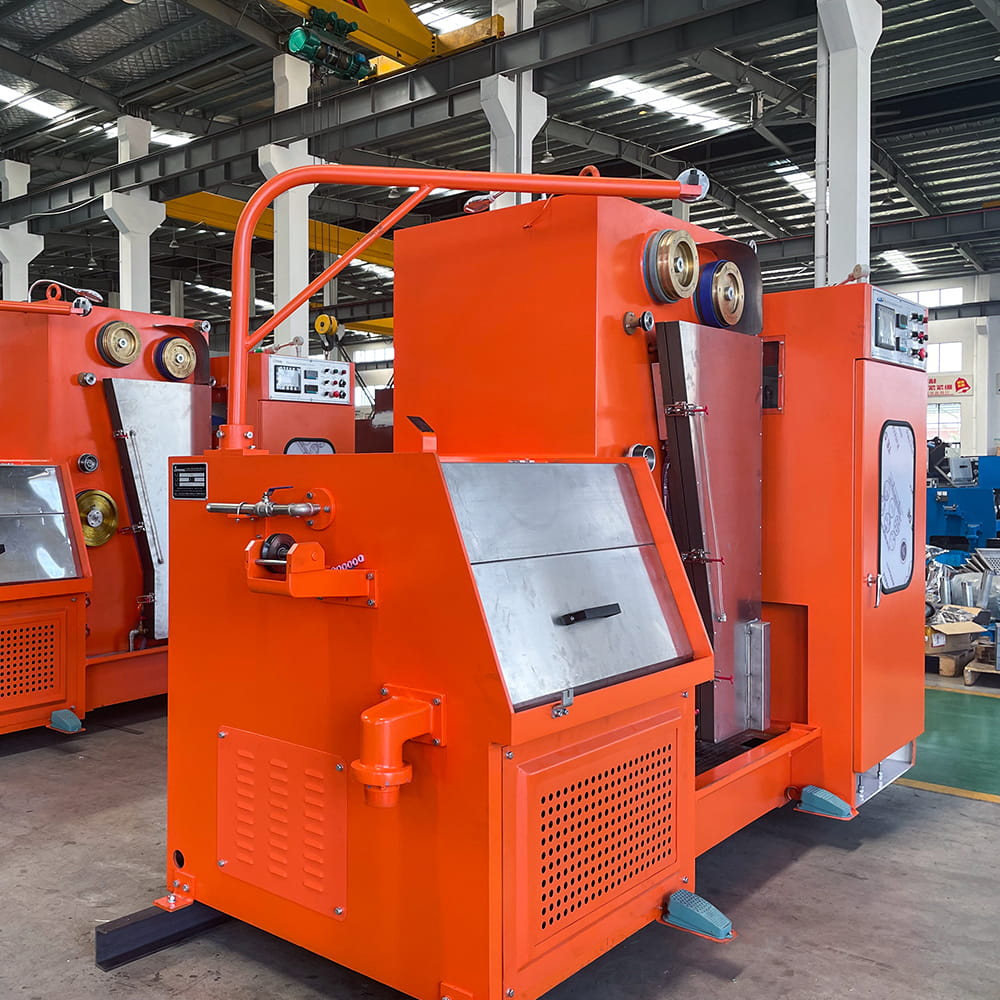

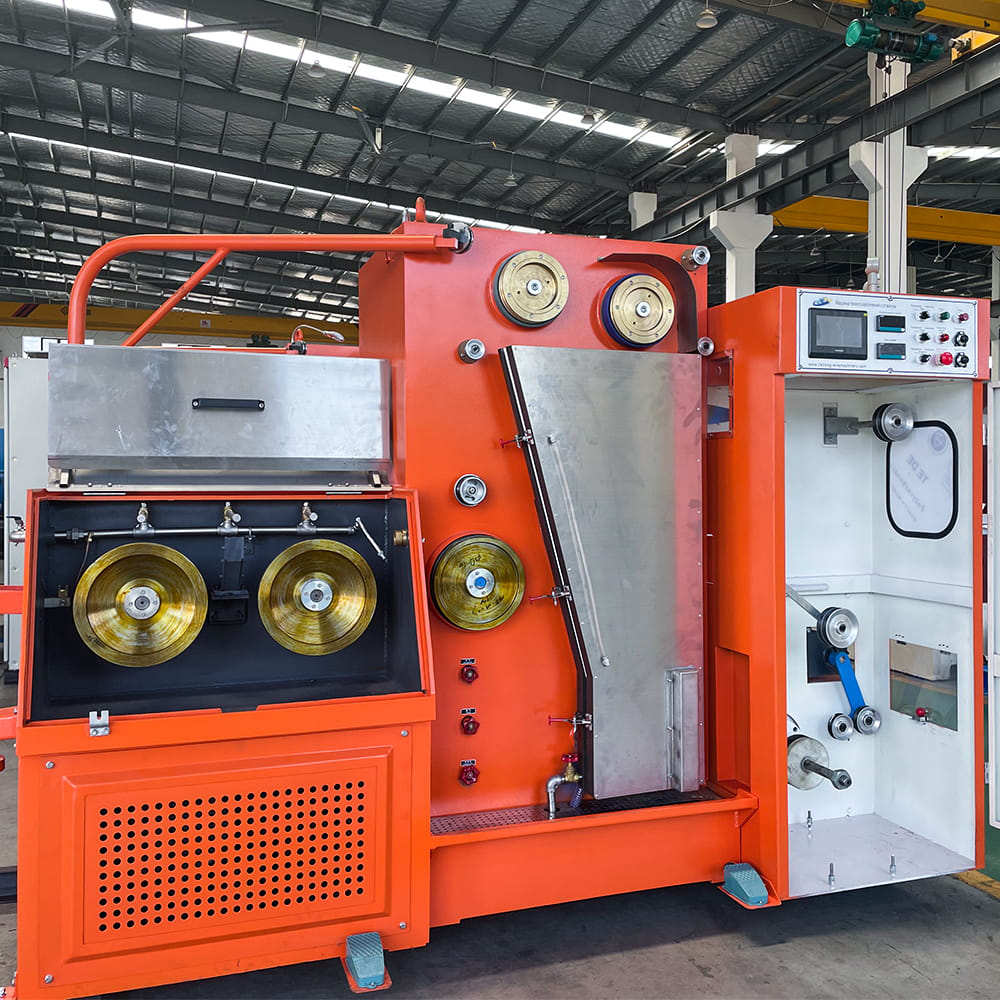

14DT Fine copper wire automatic drawing machine with continuous annealer

This type of machine is designed with a double-layer configuration. The main motor drives the capstan shaft and the drawing shaft through a flat belt, enabling its operation. The take-up shaft is powered by an independent three-phase AC motor and is synchronously controlled by double-frequency conversion. This machine is capable of drawing copper wires with an initial diameter in the range of Φ0.8 - 1.6mm down to a final diameter of Φ0.25 - 0.6mm. It operates at a running speed of 1200m/min. Owing to its stable working performance, this machine has become quite popular in the wire and cable industry.

Get A Quote

Parameter
Contact Us

1.?The capstans, pulley wheel, counting wheel, tension guide pulley, and Flat Cable guide pulley are coated with ceramic. This significantly extends the service life of the machine.

2.?Thanks to the zero-slip pilot design, the machine achieves high productivity and produces finished wires of excellent quality.

3.?It features low energy consumption, effectively saving energy.

4.?Advanced imported parts and components are widely adopted to ensure high reliability.

Model:	14DT
Inlet diameter:	0.8-1.6mm
Outlet diameter:	0.25-0.6mm
Quantity of drawing dies:	14
Slip ratio of main machine:	15%
Slip ratio of main machine:	8%
Max. Drawing speed:	1200m/min
Using motor/ main motor:	15kw
Usage:	Bare copper wire drawing
Correction system:	Automatically control
Annealing method:	Pneumatic brake
Operation direction:	Right hand machine
Brake:	Pneumatic brake
Brand:	Liqiang or OEM
Voltage:	380V or Customized
Colour:	As customer's need
