1.?The main gearbox body is made from a one-piece casting, presenting a more aesthetically pleasing and exquisite appearance.
2.?Equipped with high - precision hard - tooth surface helical gear transmission, the machine operates stably.

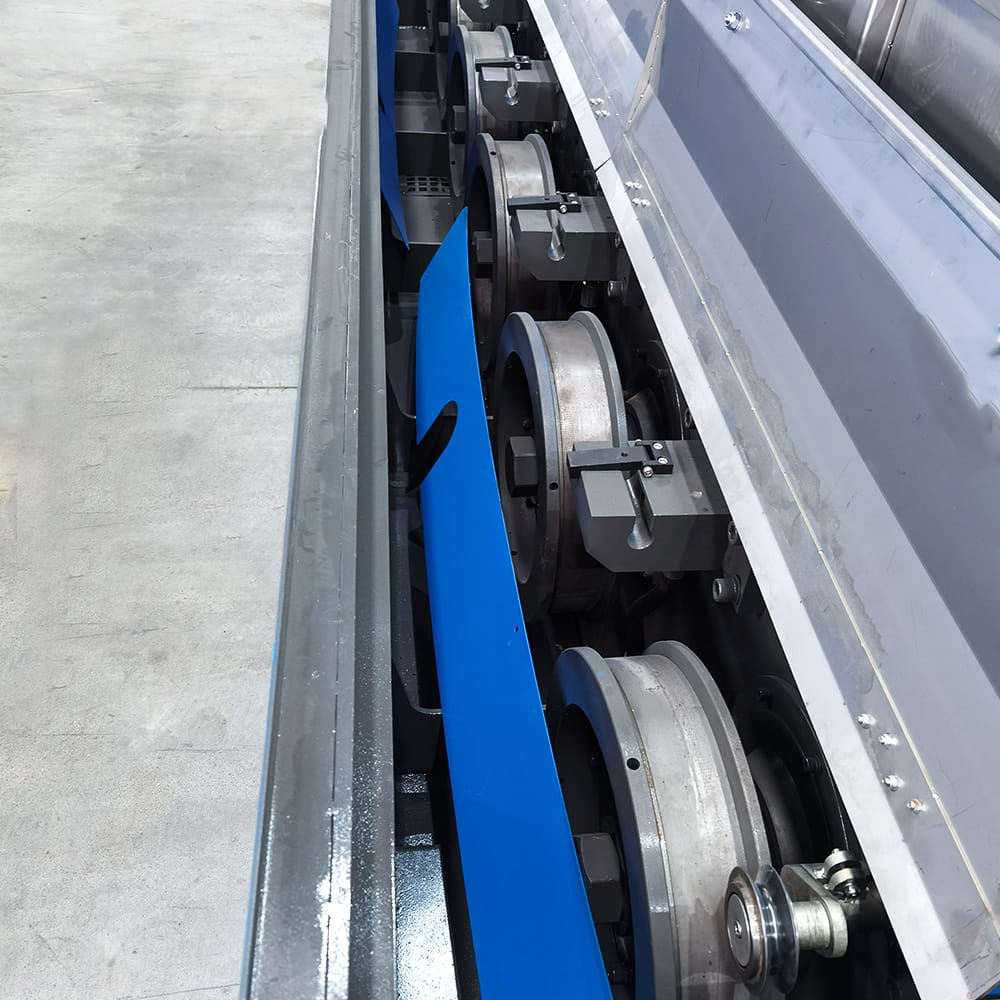

3.?The drawing capstan undergoes tungsten carbide spraying treatment, which effectively extends the service life of both the die and the capstan.
4.?The entire set is equipped with PLC control, frequency-conversion speed regulation, synchronous speed adjustment, and automatic shutdown functions in case of wire breakage and malfunctions.
5.?The drop coiler used for wire take-up features non - stop frame changing, ensuring excellent production continuity.
| Model: | LHD400-7D |
| Inlet diameter: | Φ8.0mm |
| Outlet diameter: | Φ2.6mm-Φ3.0mm |
| Max. annealing speed: | 15m/s |
| Speed ratio of capstan: | 1.38-1.20 |
| Drawing pass: | 7 |
| Diameter of drum: | Φ400mm? |
| Total noise: | <80db |
| Condition: | New |
| Voltage: | 380V or Customized |
| Brand: | Liqiang or OEM |
| Bearing: | NSK |
| Color: | as Requirement |
| Debugging: | Before Delivery |
| Delivery Time: | 30-60 Days |
| Transport Package: | Wrapped with Plastic |
| Specification: | Copper wire |
|
Trademark |
LIQIANG |
|
Origin |
China |
|
HS Code |
8463300000 |
