1.?The manufacturing process of the machine is highly mature and efficient.

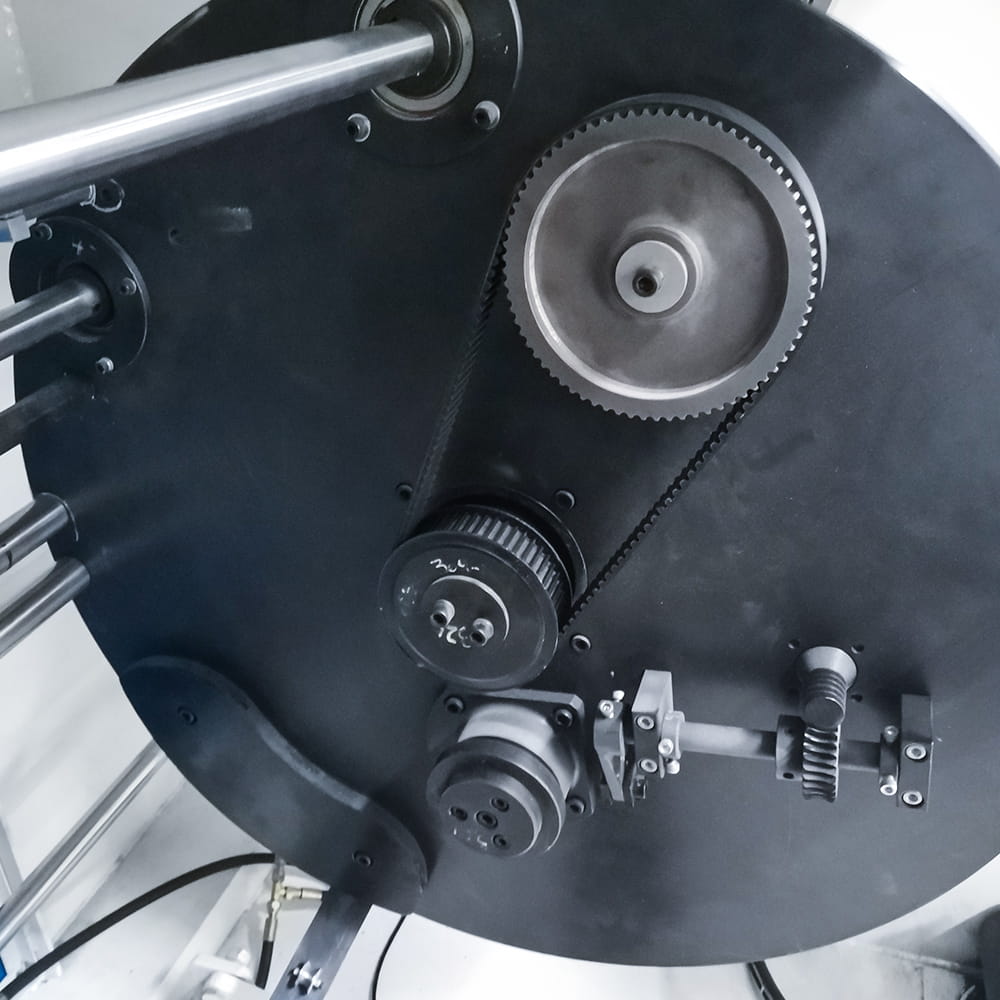

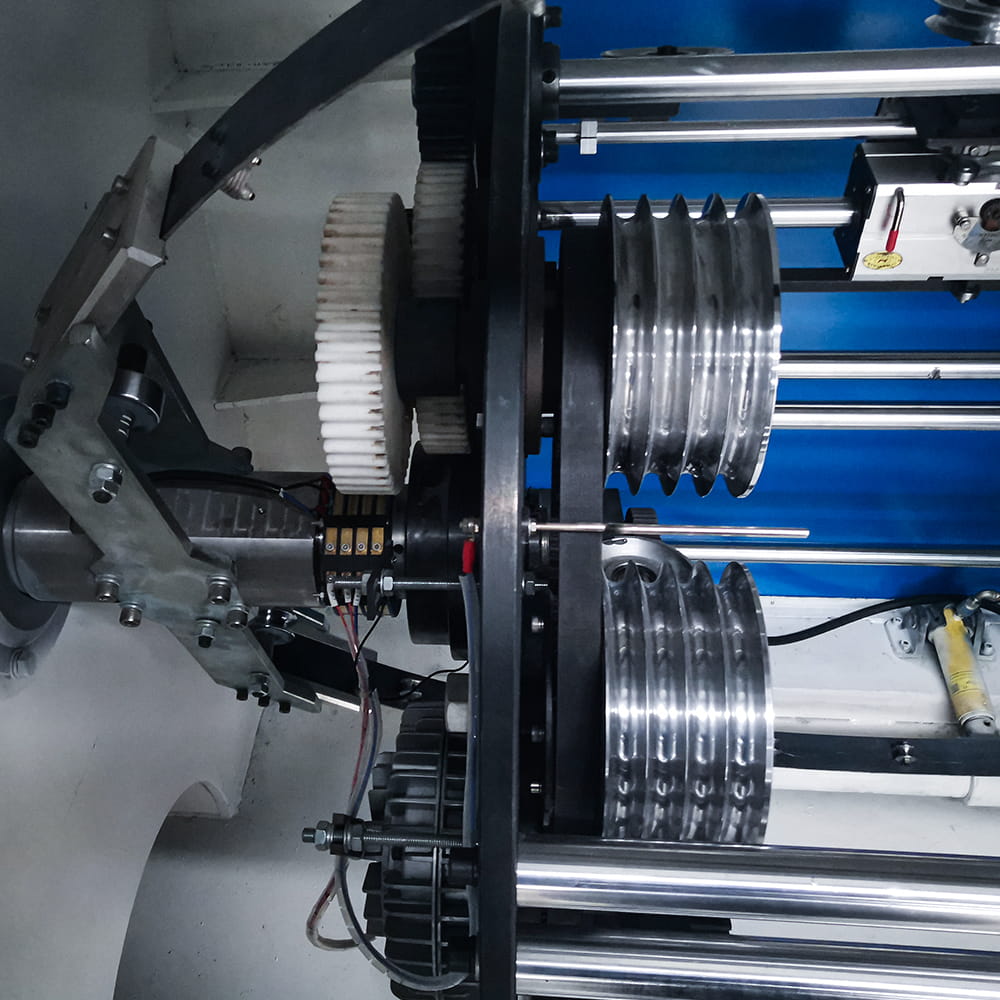

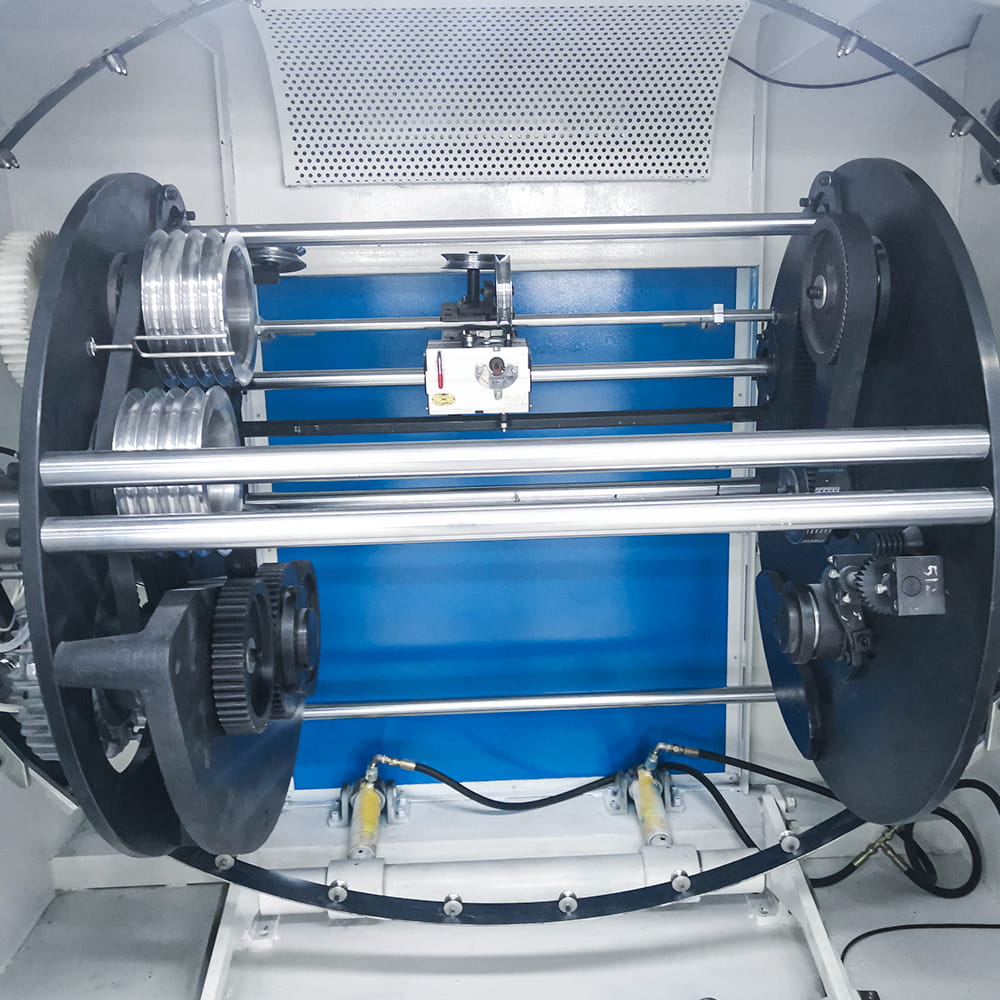

2.?Equipped with high-precision gears, the machine operates more smoothly with low noise.
3.?Equipped with imported electrical components, the machine is easier to operate via the screen.
4.?Painted with green paint, the machines have an attractive appearance.
5.?Equipped with a main-shaft meter counter, the machine can twist the same type of wire with a tolerance of only 0.01%.
| Model: | 800P |
| Max.rotating speed: | 1200RPM |
| Inlet wire dia.: | Φ0.30mm-Φ1.32mm |
| Twisting section: | 2.5-16 |
| Twisting interval: | 30(29.06mm-157mm) |
| Direction of twist: | S or Z adjustable |
| Take up spool: | Φ800*L600/max. |
| Reel top: | Φ50-Φ127 to be supplied as per spool size |
| Smooth rod rewinder: | Φ30mm |
| Main shaft center: | 1000mm |
| Main shaft lubrication: | Grease lubrication |
| Main motor power: | 15KW |
| Machine dimension: | 3595L*1950W*1800H (mm) |
