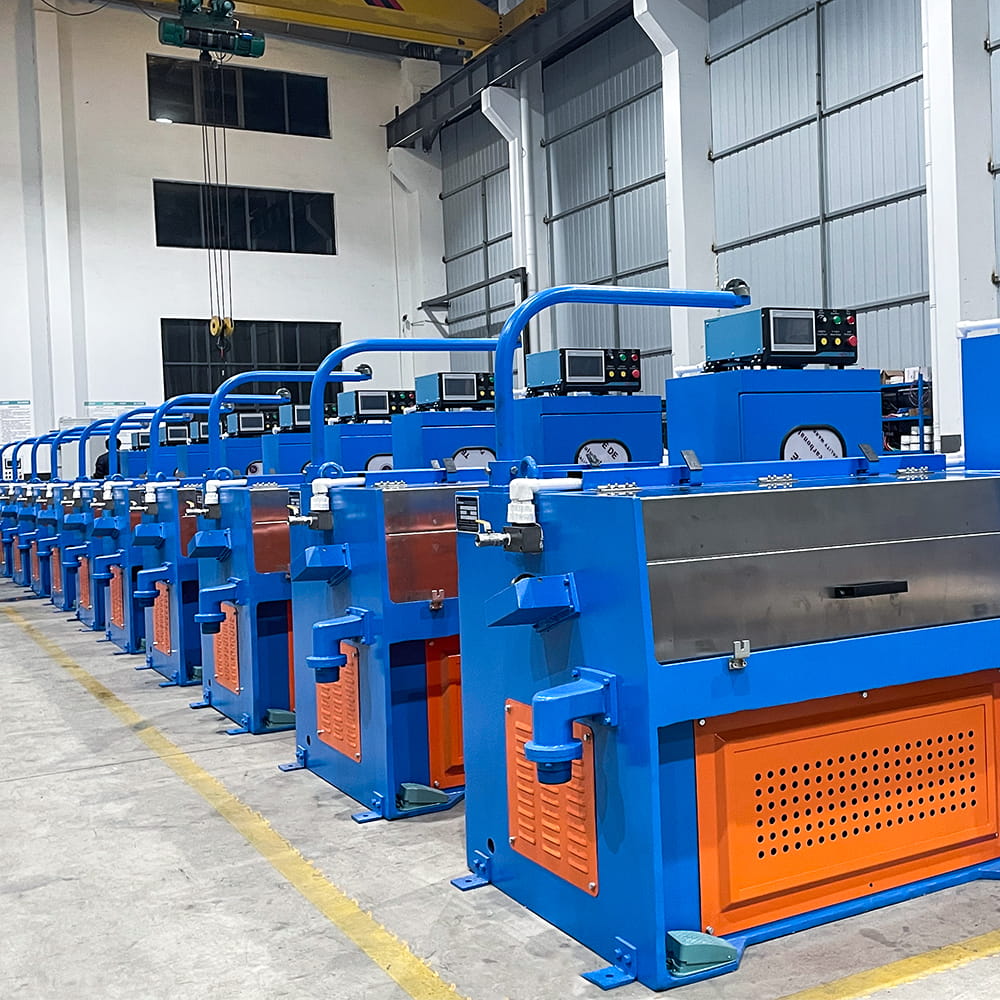

1.?Body Structure: The machine's body is formed through integrated casting, resulting in a more aesthetically pleasing and seamless construction.

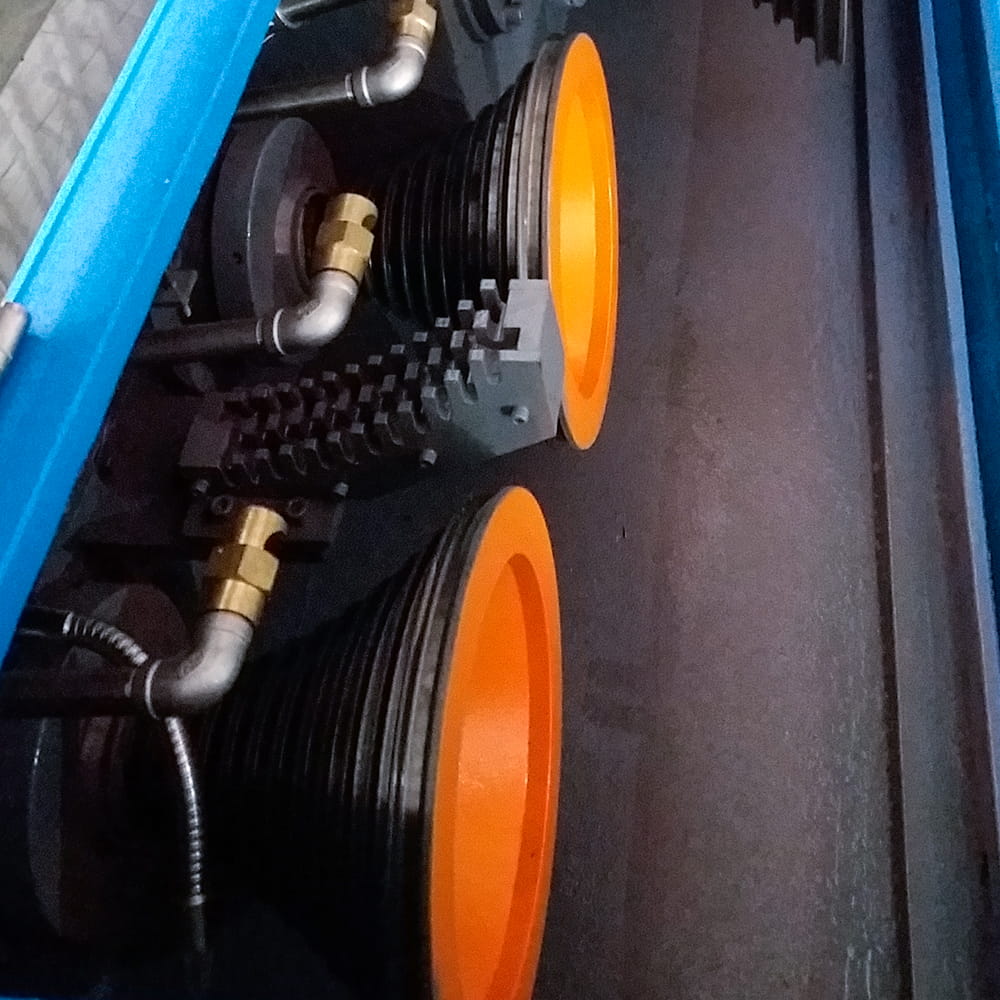

2.?Thanks to the zero-slip pilot design, the machine achieves high productivity and produces finished wires of excellent quality.

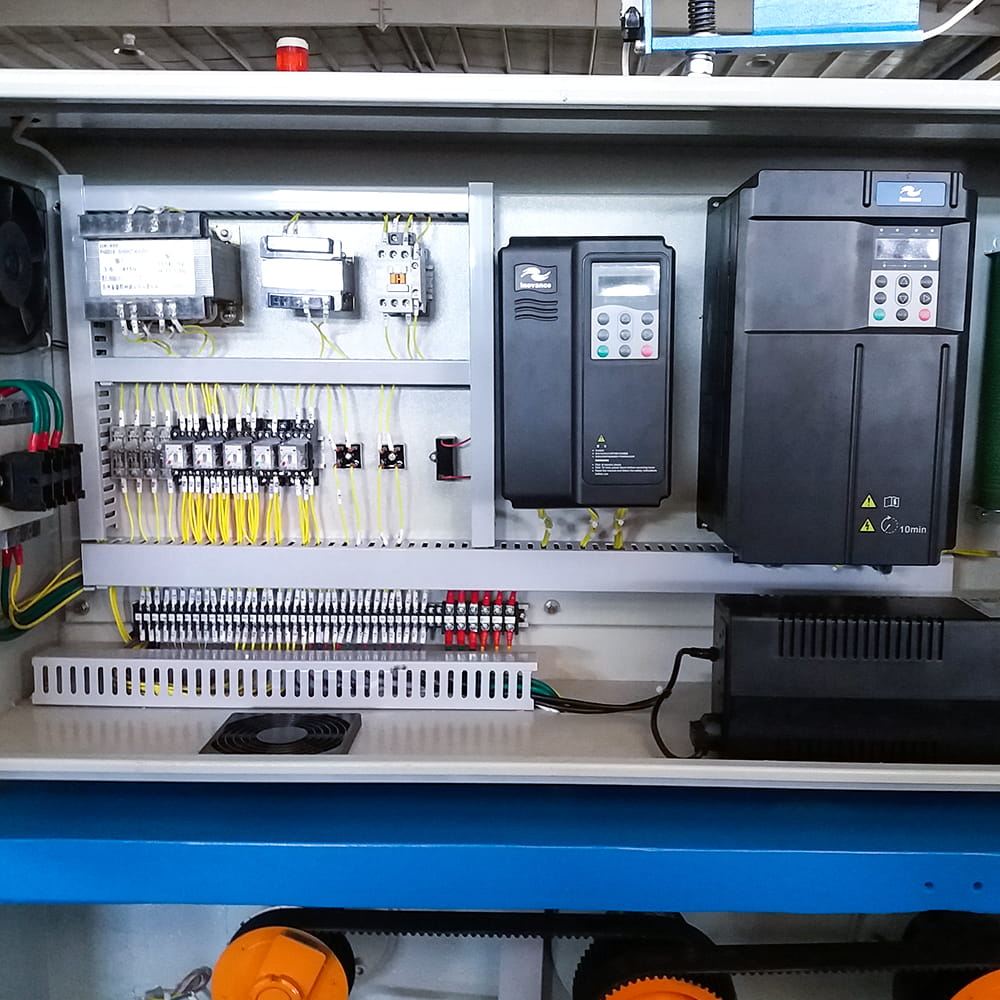

3.?The electrical control system is equipped with an automatic memory function. This enables the machine to perform normal start-stop operations and restarts after shutdown without the need for manual intervention.
| Model: | 26DW |
| Inlet diameter: | 0.6-1.6mm |
| Outlet diameter: | 0.193-0.45mm |
| Quantity of drawing dies: | 26 |
| Slip ratio of main machine: | 13% |
| Slip ratio of last die: | 8% |
| Max. Drawing speed: | 2500m/min |
| Using motor/ main motor: | 18.5kw |
| Usage: | Bare copper wire drawing |
| Correction system: | Automatically control |
| Annealing method: | DC three section annealing |
| Voltage: | 380V or Customized |
| Brake: | Pneumatic brake |
| Colour: | As customer's need |
| Brand: | Liqiang or OEM |
| Operation direction: | Right hand machine |
