1.?It is suitable for the production of brass EDM wire (both hard and soft types).
2.?It adopts a horizontal arrangement for metal drawing.
3.?It is driven by a high-accuracy timing belt.
4.?It offers a uniform stretching speed and a stable working state during the drawing treatment process.
5.?It operates with low noise and has a long service life.
| Model: | 22DHT |
| Inlet diameter: | Φ0.8-1.2mm |
| Outlet?diameter: | Φ0.1 mm ~Φ0.32mm |
| Max.?annealing speed: | 1500m/min |
| Drawing motor: | 18.5KW DC |
| Annealing power: | 12KVA |
| Annealing voltage & current: | DC80V 120A |

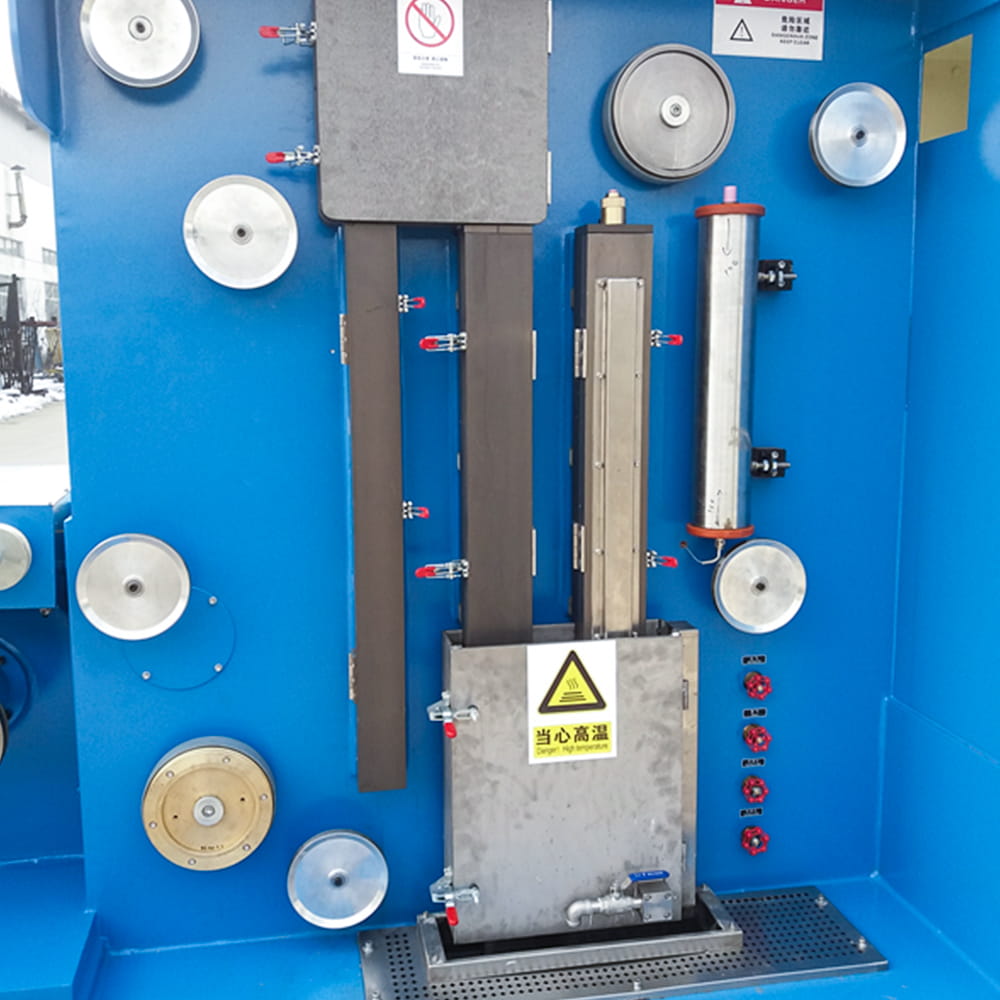

| Annealing method: | DC four section annealing |
| Max. drawing dies: | 22 |
| Take up power: | 3.7KW |
| Frame: | Cast |
| Correction system: | Automatically control |
| Dynamic control: | Double frequency converters control |
| Transmission method: | Timing belt |

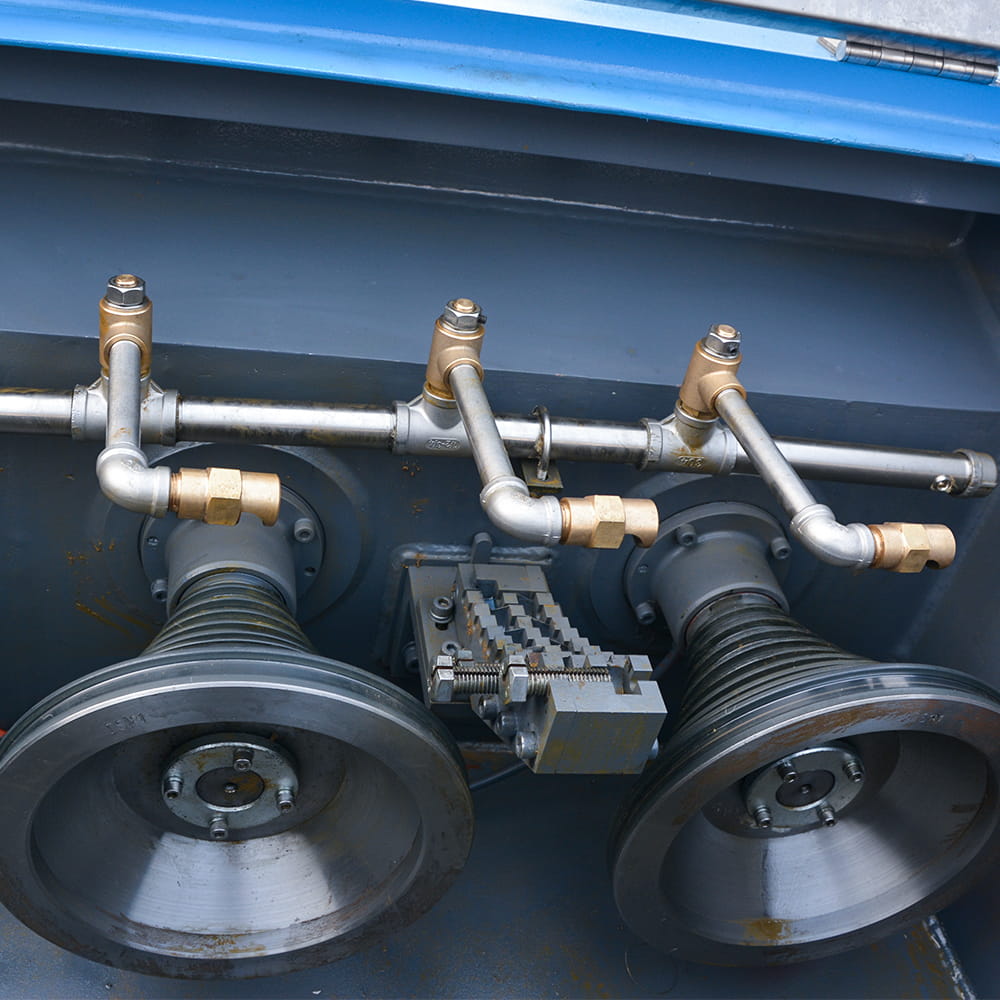

| Lubrication system of drawing: | immersing+spray type |
| Suitable spool: | As per customer's requirement |
