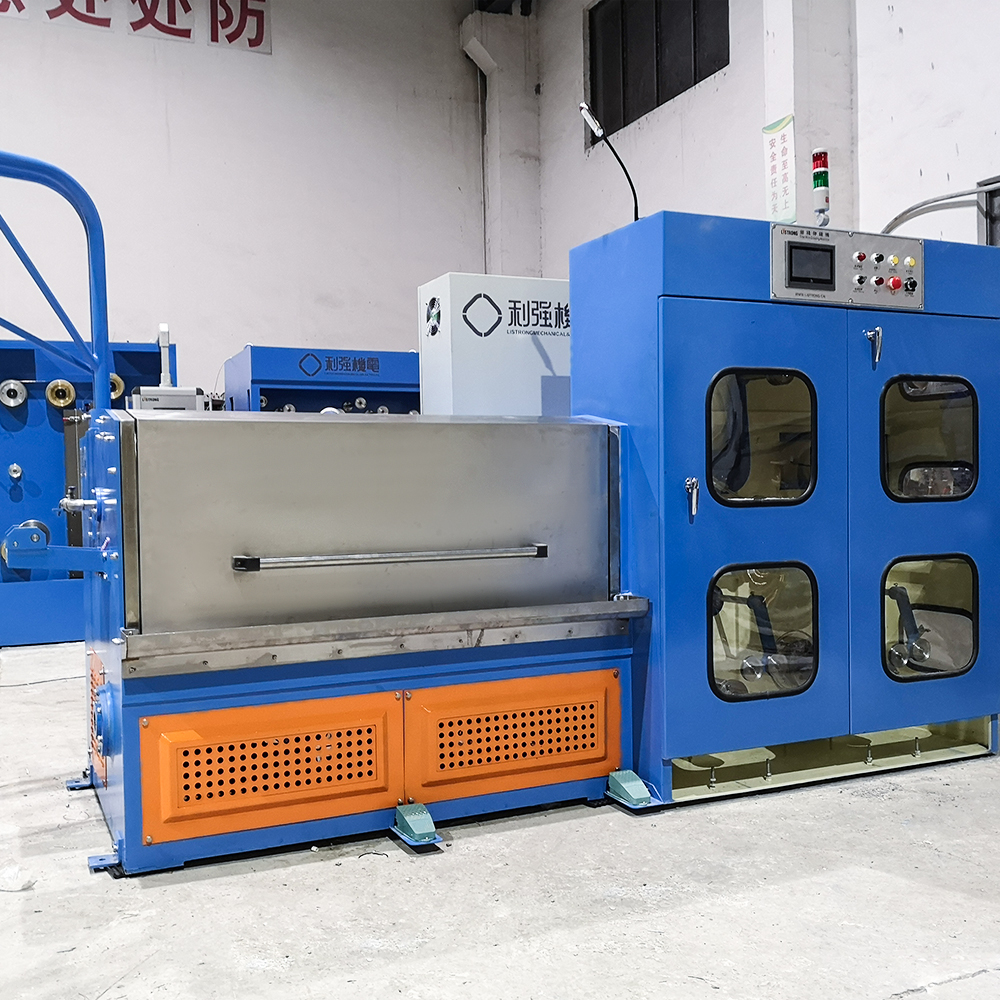

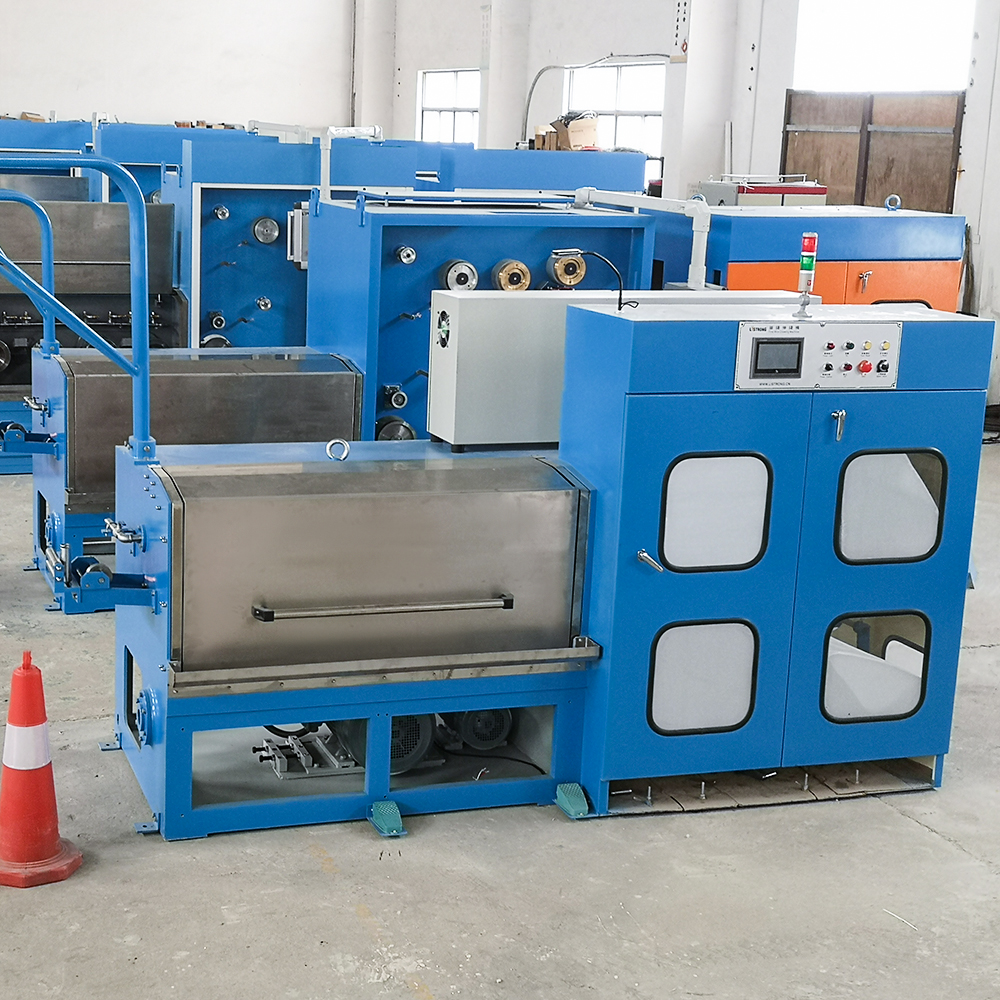

1.?The machine is capable of drawing two wires simultaneously at high speed, significantly enhancing its efficiency.
2.?With dual drives and motors for take-up, the drawing process is stable. The independent tension control system ensures that the wires are less likely to break.

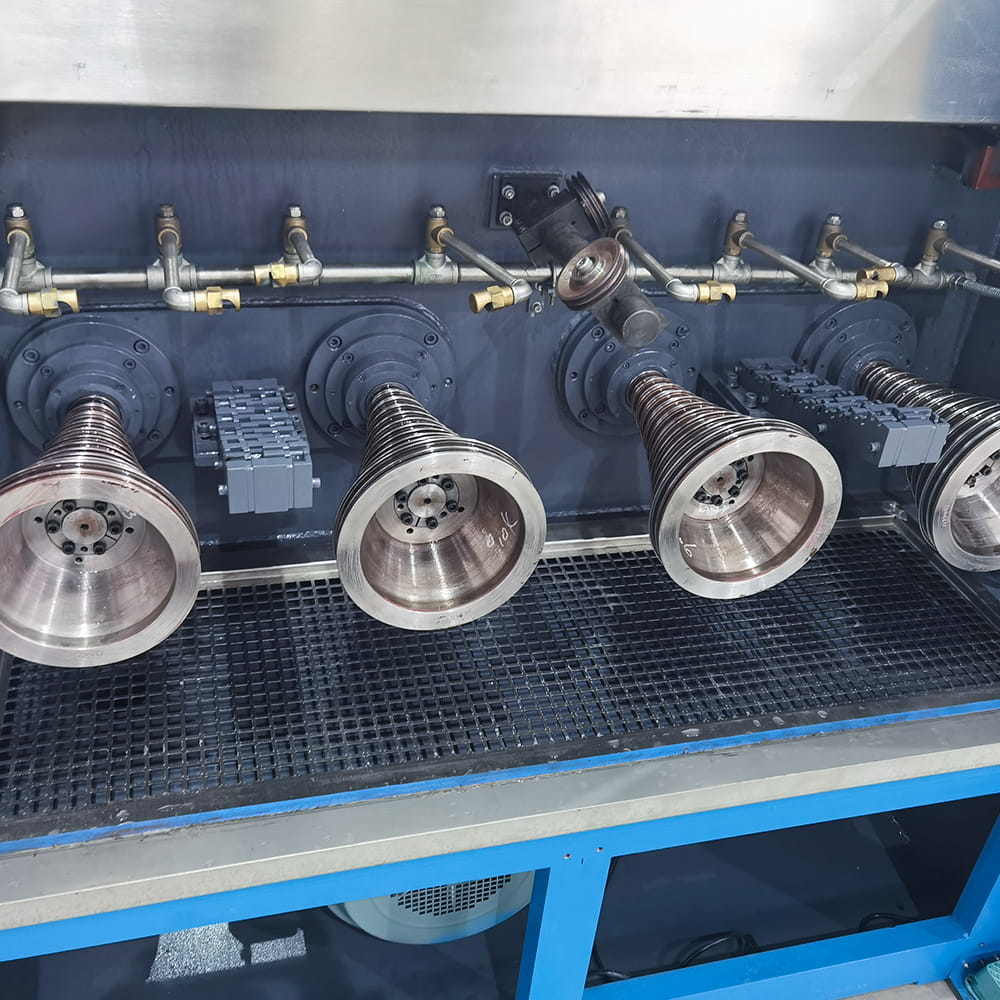

3.?Spray ceramic wire pulleys are employed, arranged in a configuration of 4 in 11 layers and 1 in the final layer, horizontally placed to facilitate easier threading.
4.?The compact machine body design maximizes the space for guiding operations. The cover in the pull-drum area is sealed with a stainless-steel door cover that can be manually opened, presenting a beautiful and elegant appearance.
| Model: | 24-2DW |
| Inlet diameter: | 2X1.0-1.6mm |
| Outlet diameter: | 2X0.12-0.4mm |
| Quantity of drawing dies: | 24 |
| Slip ratio of main machine: | 15% |
| Slip ratio of last die: | 8% |
| Max. Drawing speed: | 2000m/min |
| Using motor/ main motor: | 22kw |
| Usage: | Bare copper wire drawing |
| Correction system: | Automatically control |
| Annealing method: | DC three section annealing |
| Voltage: | 380V or Customized |
| Brake: | Pneumatic brake |
| Colour: | As customer's need |
| Brand: | Liqiang or OEM |
| Operation direction: | Right hand machine |
