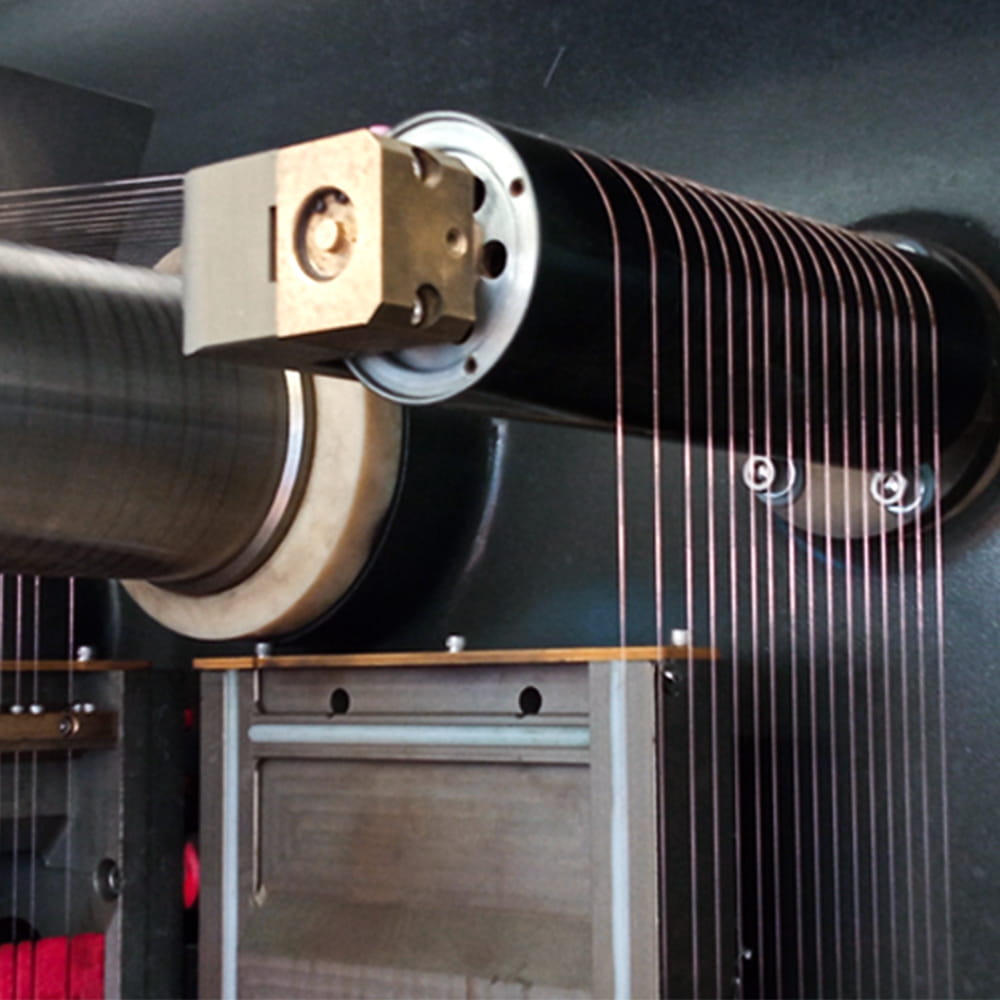

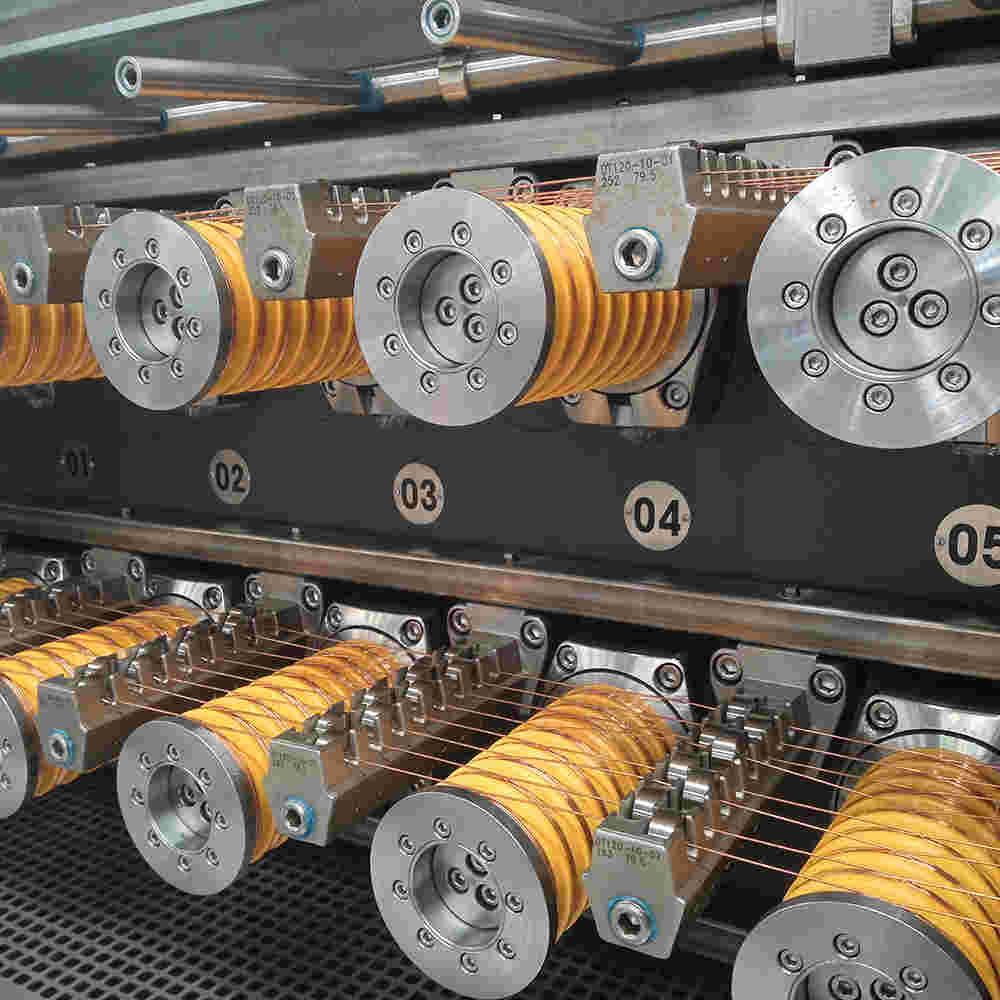

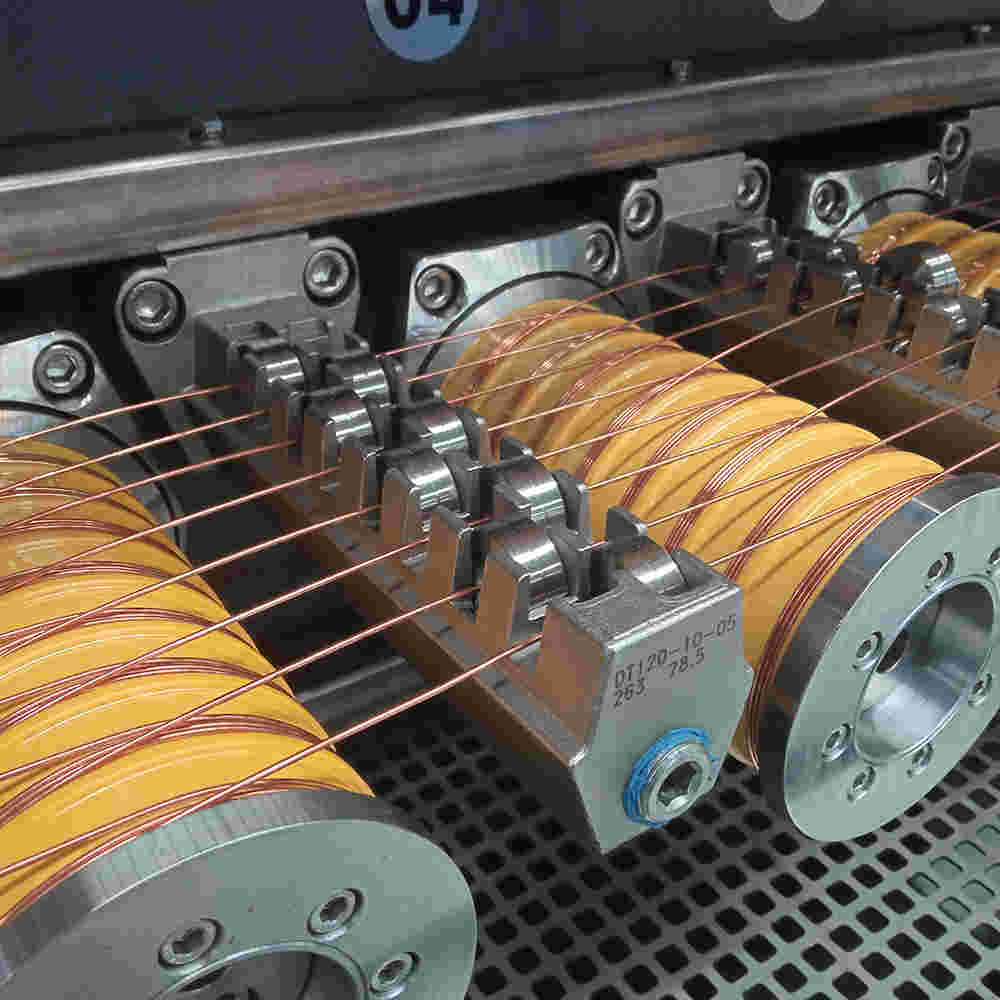

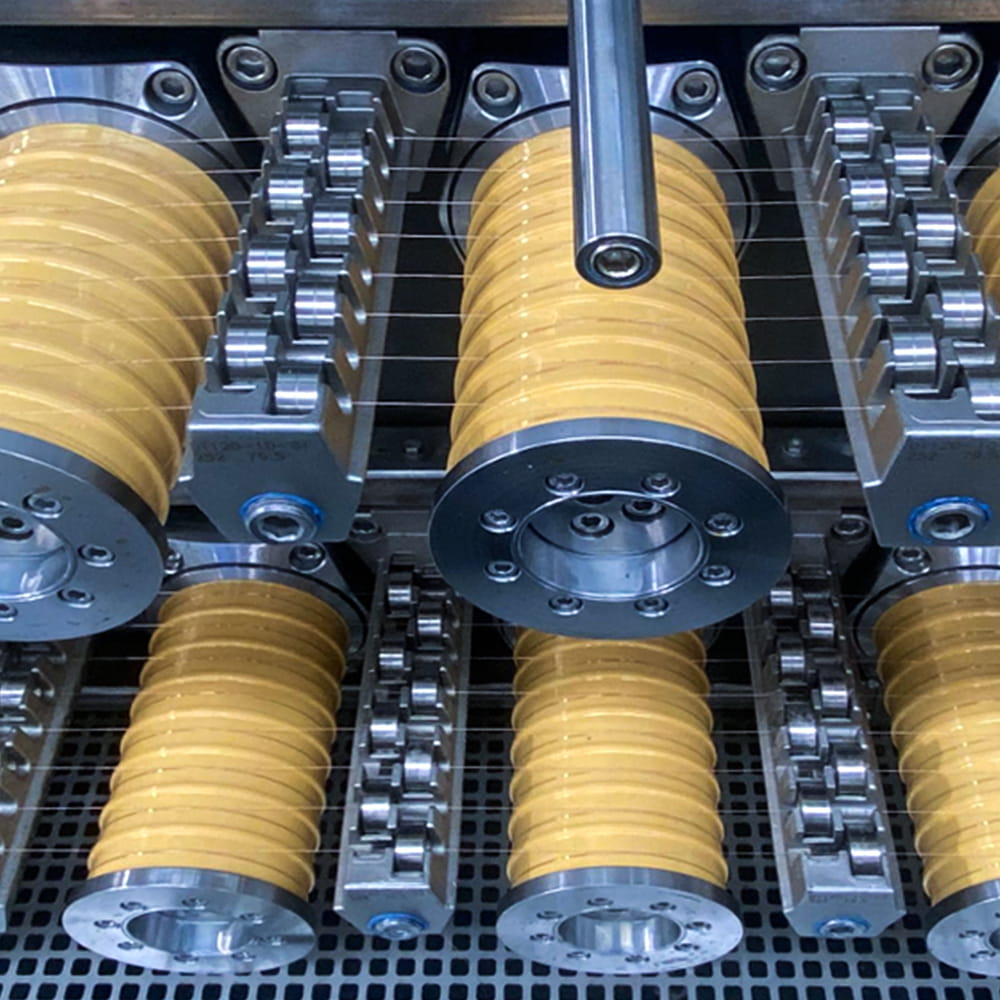

1.?The wire - drawing machine is capable of simultaneously drawing and annealing 16 wires.
2.?It features high efficiency, and saves energy, space, and labor.
3.?The multi-wire tandem drawing machine operates without wire deflections, with a horizontal drawing direction.
4.?It has tension-independent control, making the wire less prone to breakage.
5.?There are two take-up options available. The output wire can be spooled either on the same bobbin or separately on four bobbins.
| Model: | DT100.140.16-25 |
| Usage: | Bare copper wire drawing |
| Quantity of drawing dies: | 25 |
| Inlet diameter: | 16*1.5-1.8mm |
| Outlet diameter: | 16*0.1mm-0.4mm |
| Drawing rings: | 100mm with 8 grooves |
| Drawing dies: | 28*12mm |
| Max. Drawing speed: | 1800m/min |
| Using motor/ main motor: | 180kw |
| Correction system: | Automatically control |
| Annealing method: | DC three section annealing |
| Voltage: | 380V or Customized |
| Brake: | Pneumatic brake |
| Brand: | Liqiang or OEM |
| Colour: | As customer's need |
| Operation direction: | Right hand machine |
