1.?The high-precision gear transmission ensures stable operation.
2.?With a straight drawing line, die-changing is made easy.

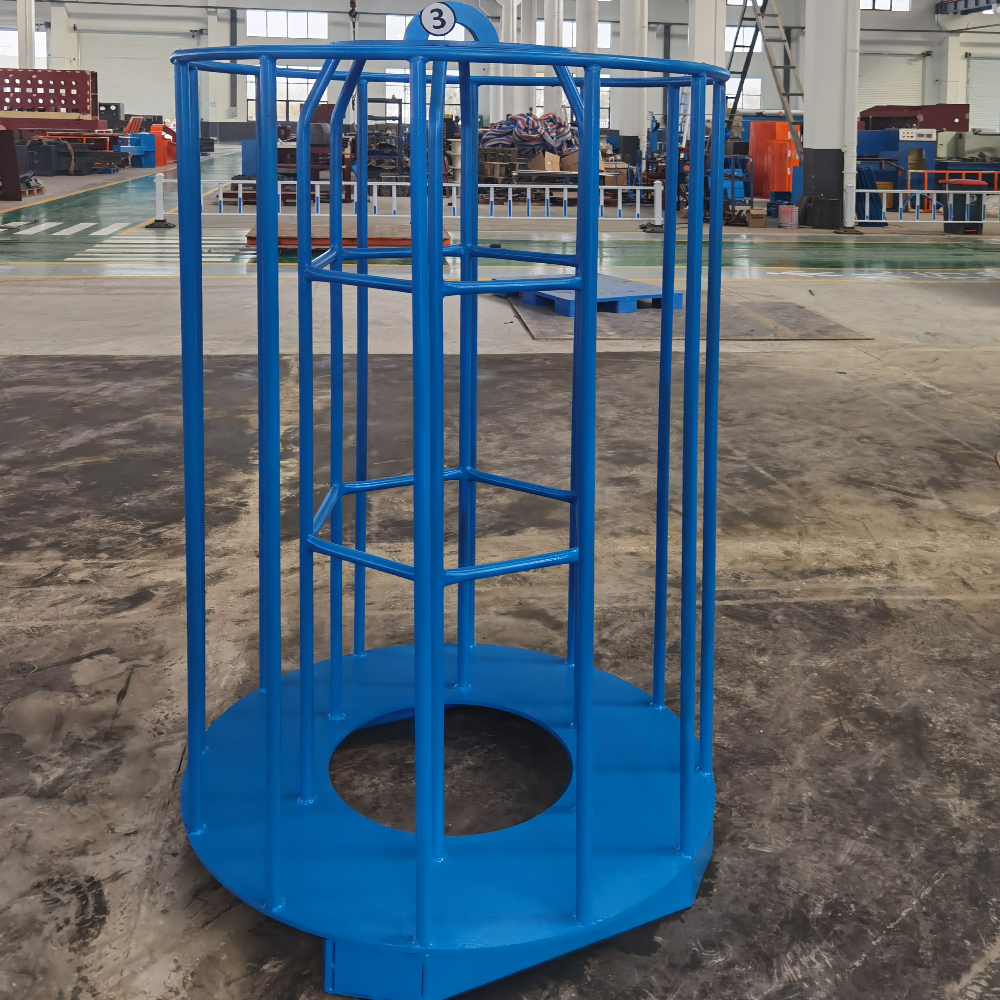

3.?It enables steel basket changing without stoppage. Wire storage can be automatically achieved through button operation.
4.?The electrical control parts are sourced from renowned domestic brands and advanced overseas brands.

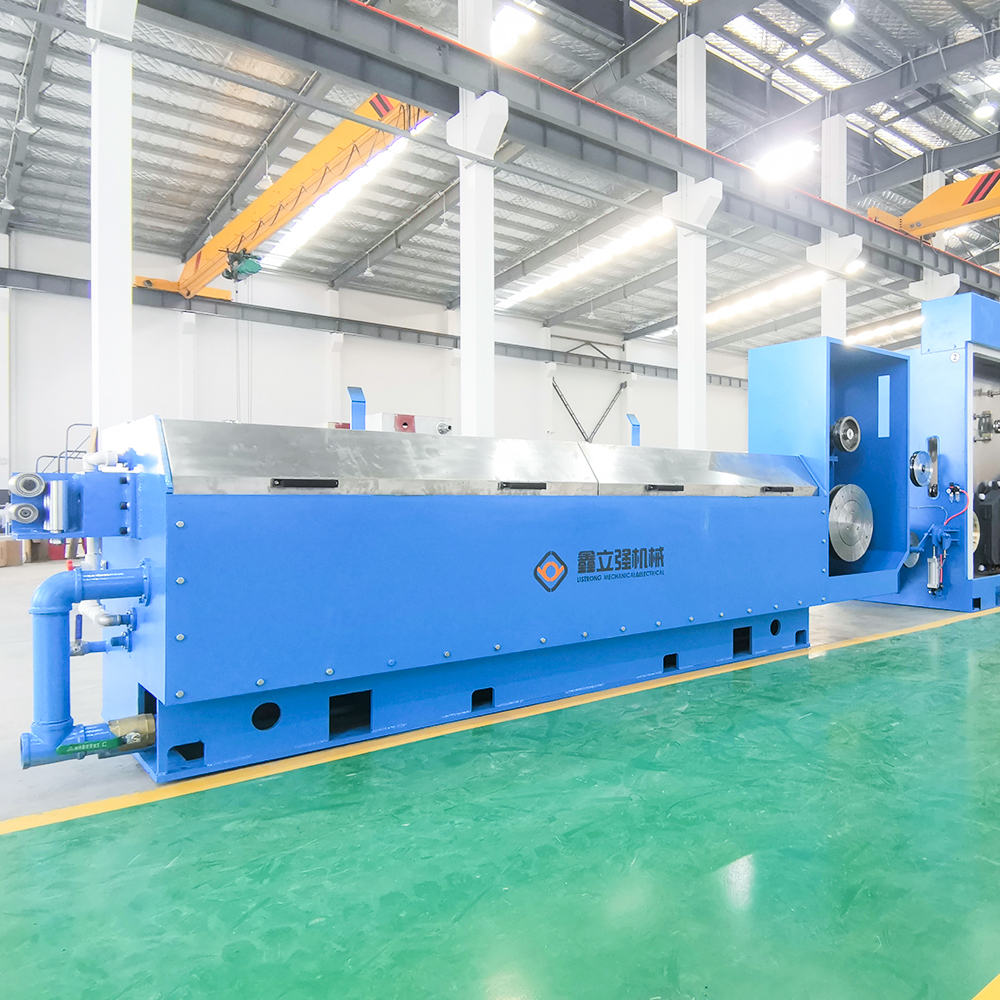

| Model: | 450-9D |
| Usage: | Bare copper wire drawing |
| Inlet diameter: | Ф8mm |
| Outlet diameter: | Ф2.5-3.5mm |
| Quantity of drawing dies: | 9 |
| Slip ratio of main machine: | ?20% |
| Slip ratio of last die: | 17% |
| Supply of lubricate oil: | 300L/min |
| Max. Drawing speed: | 10m/s |
| Using motor/ main motor: | 160KW |
| Machine's transmission method: | Motor drive triangle belt and triangle belt drive machine |
| Operation direction: | Right hand machine |
| (from Left to right) | |
| Colour: | As customer's need |
| Brand: | Liqiang or OEM |
| Voltage: | 380V or Customized |
| Total noise: | <80db |
