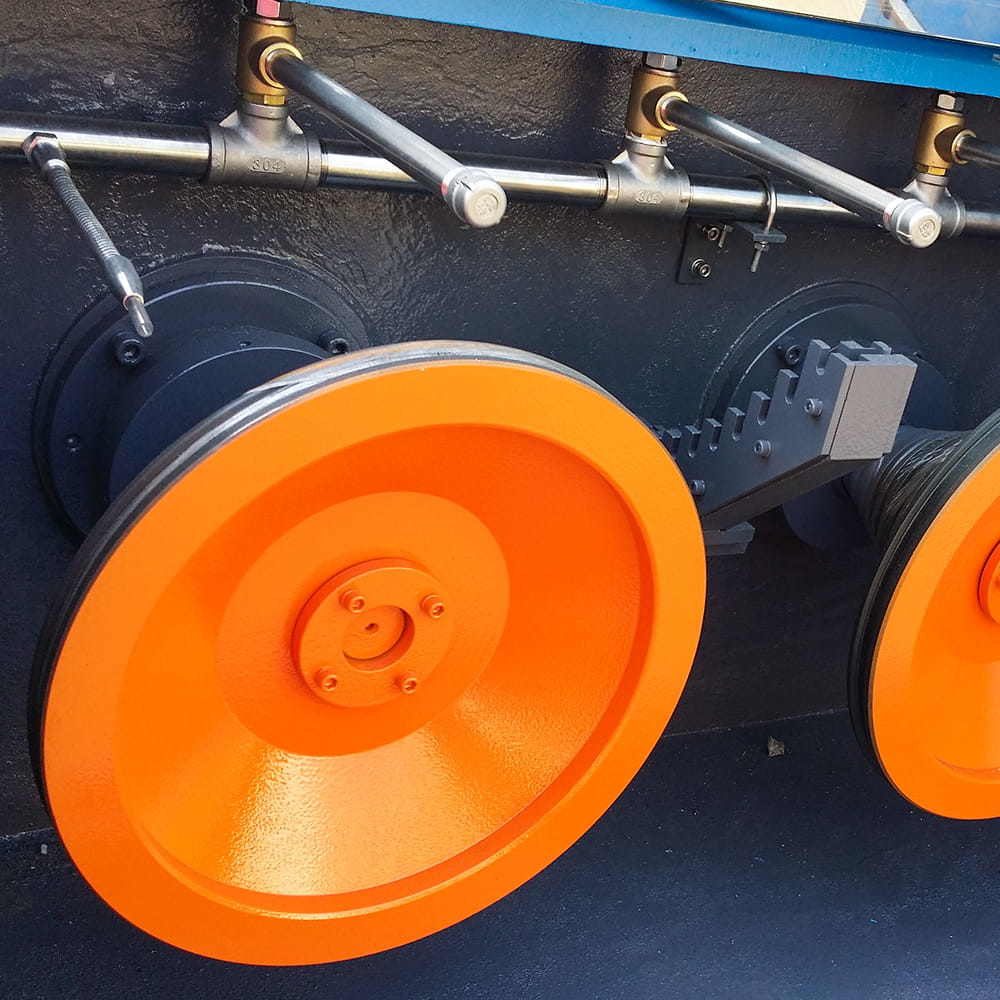

1.?The capstans, pulley wheel, counting wheel, tension guide pulley, and Flat Cable guide pulley are coated with ceramic. This ensures a long service life for the machine.
2.?The zero-slip pilot design enables high productivity and results in high-quality finished wire.
3.?It has low energy consumption, thus saving energy.
4.?Advanced imported parts and components are widely used to ensure high reliability.

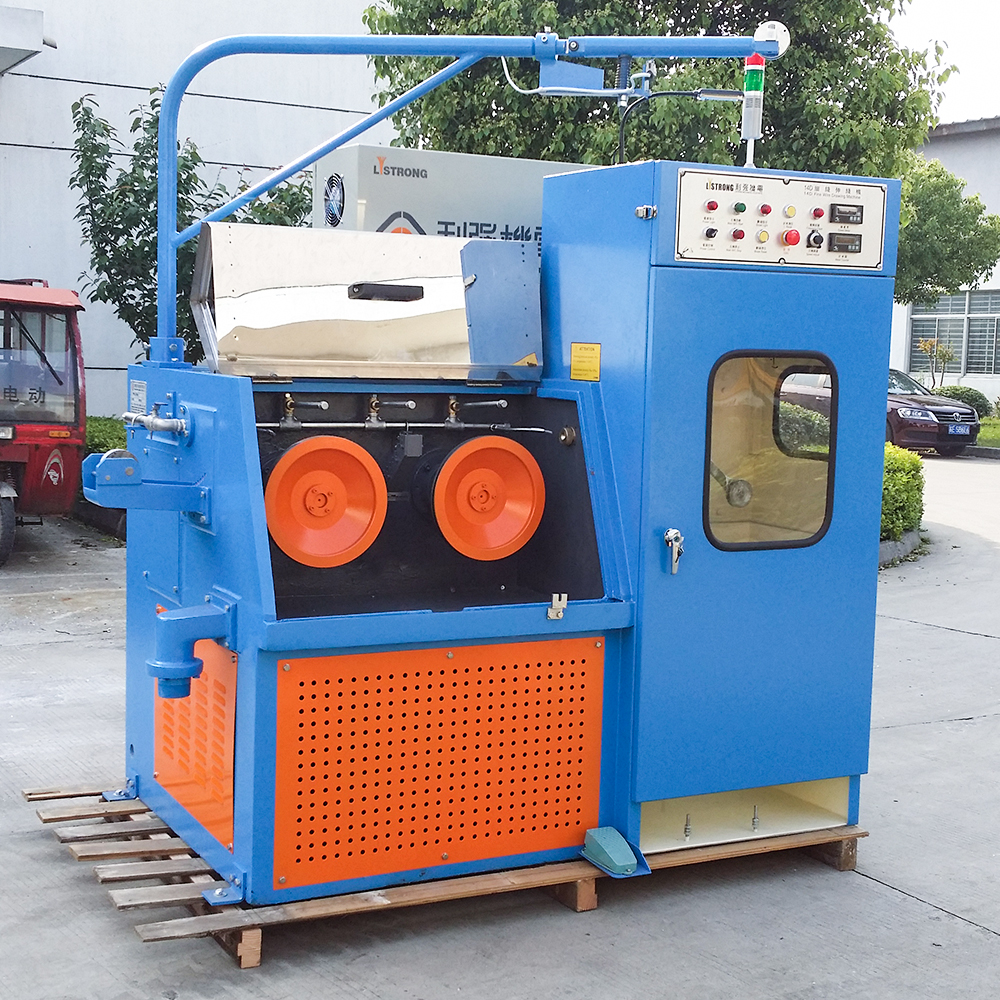

| Model: | 14D |
| Inlet diameter: | 0.8-1.6mm |
| Outlet diameter: | 0.25-0.6mm |
| Quantity of drawing dies: | 14 |
| Slip ratio of main machine: | 15% |
| Slip ratio of main machine: | 8% |
| Max. Drawing speed: | 1200m/min |
| Using motor/ main motor: | 15kw |
| Usage: | Bare copper wire drawing |
| Correction system: | Automatically control |
| Annealing method: | Pneumatic brake |
| Operation direction: | Right hand machine |
| Brake: | Pneumatic brake |
| Brand: | Liqiang or OEM |
| Voltage: | 380V or Customized |
| Colour: | As customer's need |
