1.?It features horizontally sliding continuous drawing, a half-immersing type structure, and a quick die-change system.
2.?With a smart design, it can be adapted to workshops of different sizes.
3.?Precision - imported gears contribute to an extended mechanical service life.

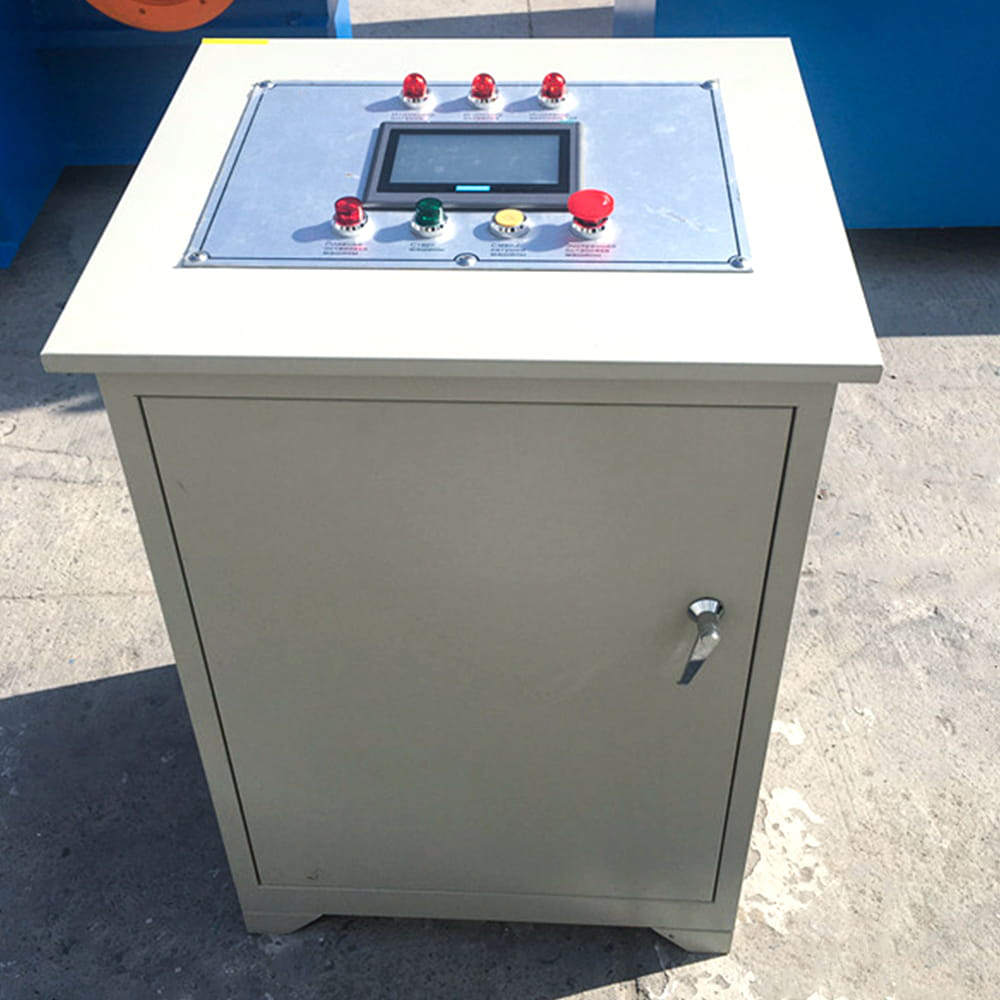

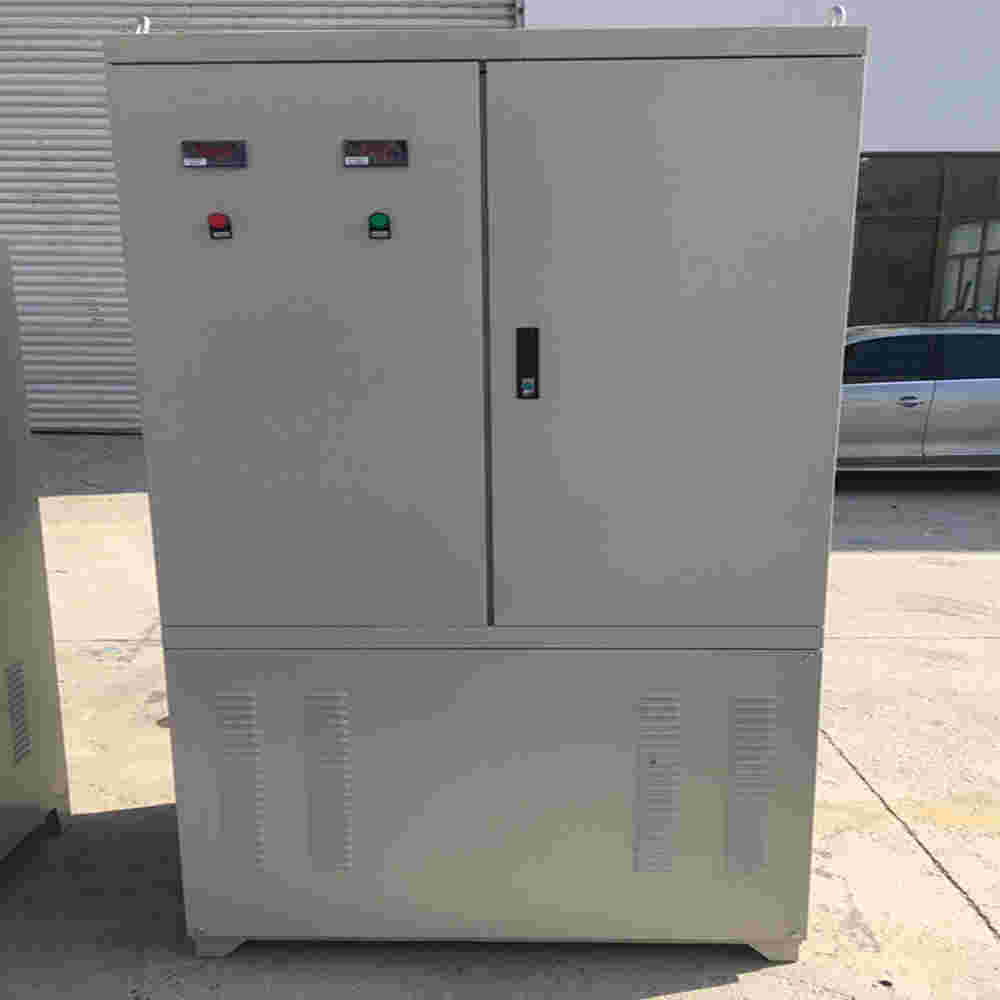

4.?Equipped with PLC, all working data can be displayed on the monitor, making it extremely easy to operate.

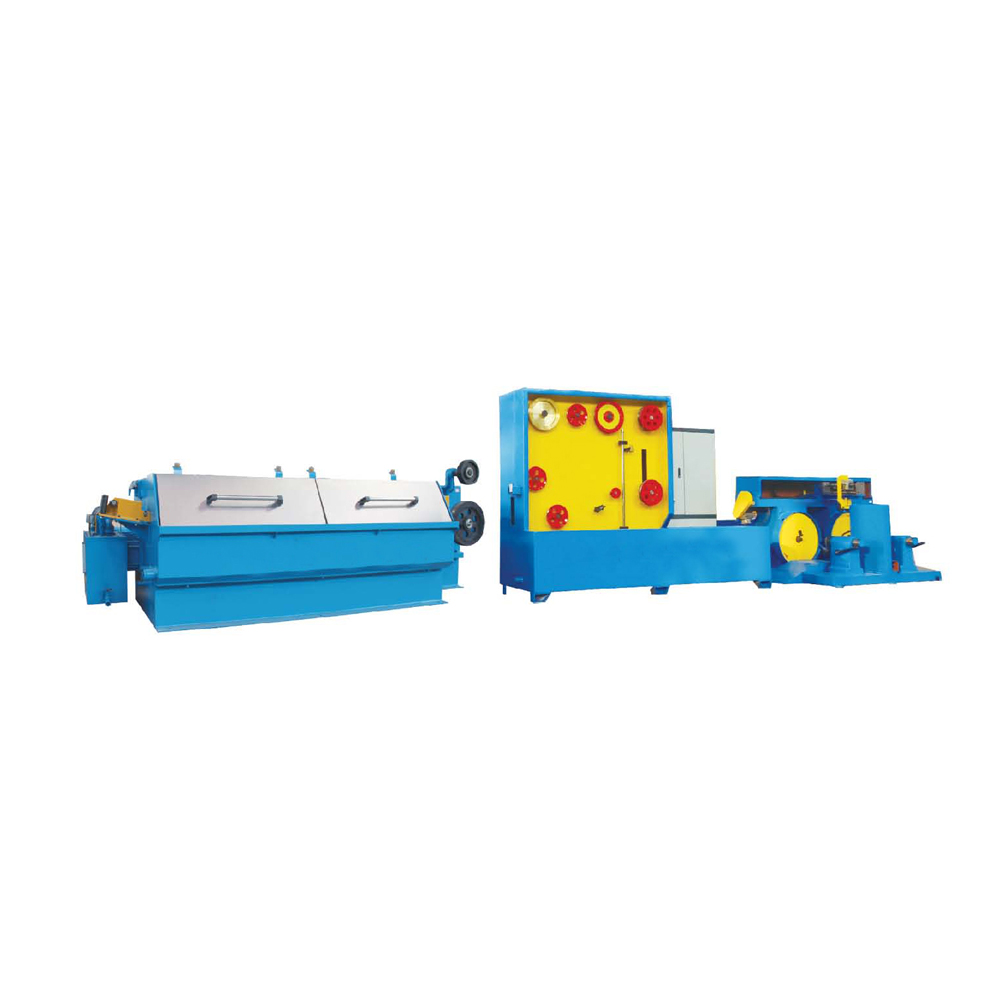

| Model: | 400-13DT |
| Inlet diameter: | Φ8.0mm |
| Outlet diameter: | Ф1.38-2.78mm |
| Max. annealing speed: | 600m/min |
| Usage: | bare copper wire drawing |
| Drawing pass: | 13 |
| Diameter of drum: | Φ400mm? |
| Total noise: | <80db |
| Main machine power: | 90KW |
| Annealing machine: | 11KW |
| Take-up machine: | 15KW |
| Power: | 380V?50HZ or others |
| Drawing capstan: | Tungsten?carbide coated |
| Suitable spool: | Φ400/Φ500mm |

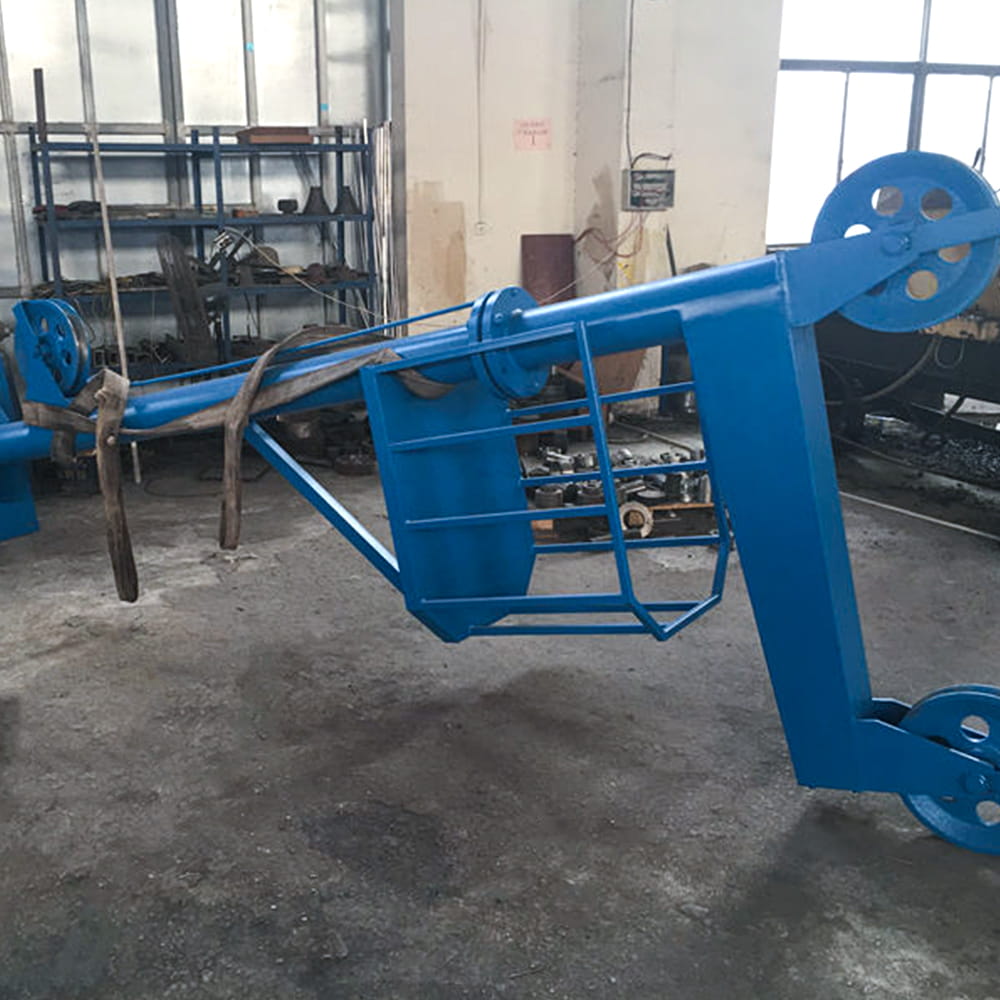

| Pay-off method: | over-head type |
| Lubrication method: | half-immersing + spray type |
